- Measuring range: Acceleration
0.0 - 399.9 m/s² / 0.0 - 15744 in/s²
Resolution: 0.1 m/s² / 3.94 in/s²
Accuracy: @ 160 Hz±2 %
Frequency range: 1 kHz - 10 kHz; 10 Hz - 10 kHz
- Measuring range: Velocity
0.00 - 399.99 mm/s / 0.00 - 15.74 in/s
Resolution: 0.01 mm/s / 0.0039 in/s
Accuracy: @ 160 Hz±2 %
Frequency range: 10 Hz - 1 kHz
- Measuring range: Displacement
0.000 - 3.999 mm / 0.000 - 0.154 in
Resolution: 1 µm / 39.4 µin
Accuracy: @ 160 Hz±2 %
Frequency range: 10 Hz - 200 Hz
Measurement parameters: RMS, Peak, Peak-Peak; Crest factor
Units: switchable metric / imperial
Display: 2.4" LC display
Menu languages: English, German, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Japanese
Power supply: 3 x 1.5 V AA batteries
Operating and storage conditions: -20 ... +65 °C / -4 ... 149 °F; 10 ... 95 % r.H.
Dimensions: 150 x 80 x 38 mm / 5.9 x 3.1 x 1.5"
Weight: 170 g / 6 oz
-Technical Data Vibration Sensor:
Resonance frequency: 24 kHz
Transverse sensitivity: ≤ 5%
Destruction limit: 5000 g (peak)
Operating and storage temperature: -55 ... +150 °C / -67 ... 302 °F
Housing material: stainless steel
Mounting thread: ¼ - 28“
Dimensions: Ø 17 x 46 mm / 0.67 x 1.8"
Weight (without cable): 52 g / 1.8 oz
Delivery Scope:

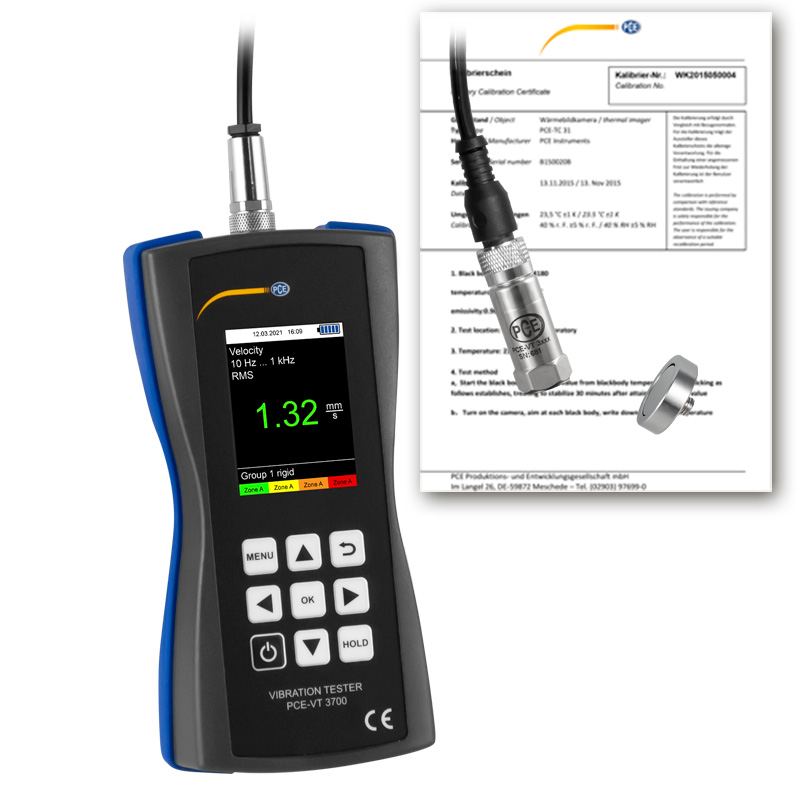

1 x Vibration Meter PCE-VT 3700-ICA
1 x Sensor with spiral cable PCE-VT 3xxx SENSOR
1 x Magnet adapter PCE-VT VMH
3 x 1.5 V AA batteries
1 x Quickstart guide
1 x Service bag
1 x ISO calibration certificate
