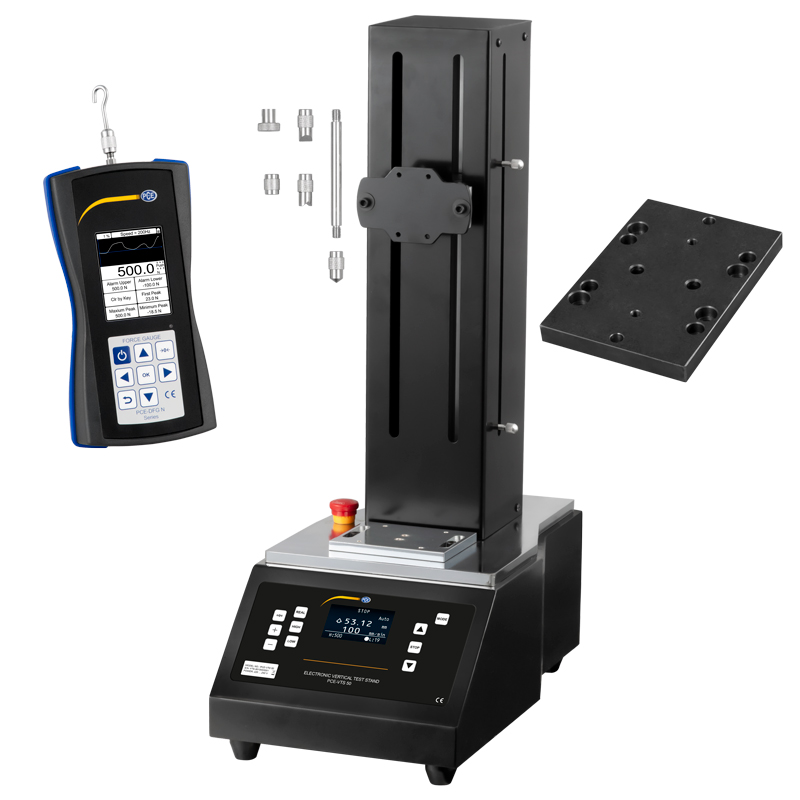

PCE VTS 50-DFG N 500-KIT KIT incl. Force Test Stand and Force Gauge (0~500 N)

- Force Test Stand:

Force range: 500 N / 50 kg / 110 lb

Distance display resolution: 0.02 mm

Travel path: 270 mm / 10.6"

Speed: 1 ... 500 mm/min

Resolution: 1 mm/min

Speed accuracy: 2 %

Power supply: 220 ... 240 V AC, 1.5 A

Fuse: 2 A

Ambient conditions: 20 °C ±10 °C, 15 ... 80 % RH

Dimensions: 45 x 26 x 68 cm / 17.7 x 10.2 x 26.7"

Weight : 35 kg / 77 lb

Measuring range: 0 ... 500 N

Accuracy: ± 0.1% of the measuring range

Resolution: 0.1 N

- Force Gauge:

Measurement units: N, kg, lb, KPa

Display: 2.8" TFT graphic display

Alarm Modes: Inside, Outside, Crack, Shutdown

Sampling rate: 6 ... 1600 Hz

Storage: 100 measurements

power supply: NiMh battery 6V / 1600-mAh

Battery life: about 10 hours

Charging adapter: 12V / 1A

Outputs:

Interface: USB

Switching output: 12 V / 50-mA

Protection class: IP 54

Operating and storage conditions: -10 ... 50°C / 14 ... 122°F; 5 ... 95% rh non-condensing

Force-receiving piece: 6 x 7 mm / .2 x .3 in

Dimensions: 200 x 97 x 42 mm / 7.9 x 3.8 x 1.7 in

Weight: 540 g / 1.2 lbs

Delivery Scope:

1 x Motorized Force Test Stand PCE-VTS 50

1 x Force Gauge PCE-DFG N 500

2 x User manual

1 x Chisel head adapter

1 x Flat head adapter

1 x Pointed head adapter

1 x Hook adapter

1 x Notch head adapter

1 x Extension rod (90 mm)

1 x PC software

1 x USB data cable

1 x Mains power adapter

1 x Carrying case
