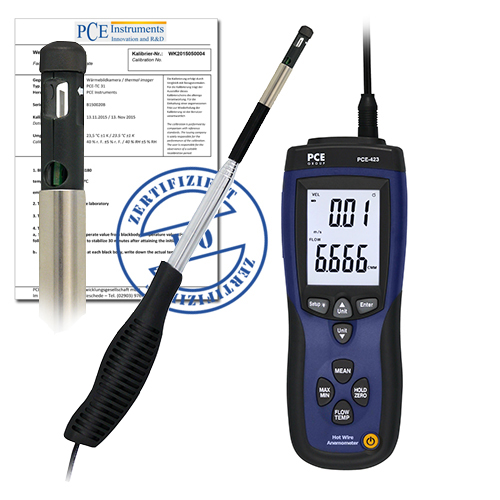

PCE-423-ICA Air Velocity Meter

Specifications

Measurement ranges

0.1 m/s ... 25.0 m/s; 20 ft/min ... 4925 ft/min; 0.2 kn ... 48.5 kn

0.3 km/h ... 90.0 km/h; 0.2 mph ... 55.8 mph; 0.0°C ... 50.0°C / 32°F ... 122°F

Resolution

0.01 m/s; 1 ft/min; 0.1 kn; 0.1 km/h; 0.1 mph; 0.1°C / 32.2°F

Accuracy

- Air velocity:±5% ±1digit (of the measurement field)

- Temperature:±1°C / 33.8°F

Thermal probe:Telescopic thermal probe

-Length unextended:185 mm / 7.3 in

-Length extended:1000 mm / 39.4 in

-Maximum diameter:12 mm / 0.5 in

-Minimum diameter:10 mm / 0.4 in

Measurement quota:Approx. 0.8 s

Display:LCD display; 46.7 mm x 60 mm / 1.8 in x 2.4 in

Interface:USB

Operating conditions:0°C ... 50°C / 32°F ... 122°F; 80% H.r.

Power:9V battery

Auto shut-off:After 5 min. of inactivity

Dimensions:210 mm x 75 mm x 50 mm / 8.3 in x 3.0 in x 2.0 in

Enclosure:ABS plastic

Weight:280 g / < 1 lb

Delivery contents

1 x PCE-423 Air velocity meter with telescopic thermal probe

1 x Software and USB data cable

1 x Mains component

1 x Battery

1 x Carrying case

1 x User's manual

1 x ISO calibration certificate

Manual
