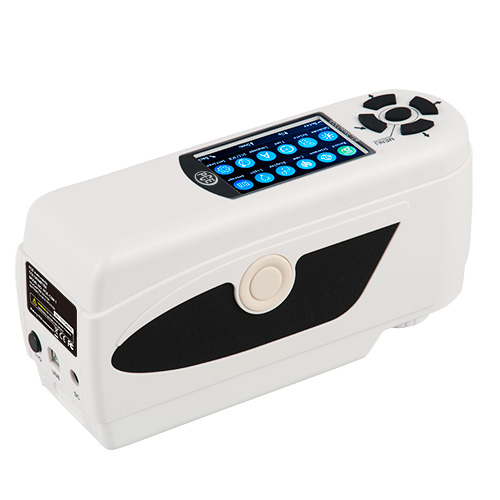

PCE CSM 7 Color Meter

Specifications

Illuminating/Viewing Geometry: 8/d

Measuring Aperture: Ø8 mm / Ø4 mm

Detector: Silicon photoelectric diode

Color Space: CIEL*a*b*C*h; CIEL a* b*; CIEXYZ; CIERGB; CIEL u* v*; CIEL*C*h°

Yellowness & Whiteness Color Fastness

Color Difference Formula: ΔE*ab; ΔL*ab; ΔE*C*H; ΔECIE94; ΔEHunter

Light source: D65, D50, A

Light source device: LED light excitation

Errors between each equipment: <=0.40 ΔE*ab

Storage: 100 pcs. standards, 20,000 pcs. samples

Repeatability:

Standard deviation within ΔE*ab 0.07

Average of 30 measurements of standard white plate

Weight: 500 g / 17.6 oz

Dimension: 205 x 70 x 100 mm / 8 x 2.7 x 3.9 in

Power source: Rechargeable Lithium-Ion battery 3.7 V

Charging Time: 2 hours

Measuring times before recharging: more than 3000 times

Lamp Life: 5 years or more than 1.6 million measurements

Operating Temperature / Humidity Range: -10 ... +40 °C / 14 ... 104 °F; 0 ... 85% relative humidity, non condensation

Data Interface: USB

Dilivery Contents

1 x Color Meter PCE-CSM 7

1 x Transport case

1 x Rechargeable battery

1 x Mains AC adapter

1 x Calibration tester

1 x PC-Software

1 x User manual

2 x Apertures (4 and 8 mm diameter)

1 x White calibration standard
