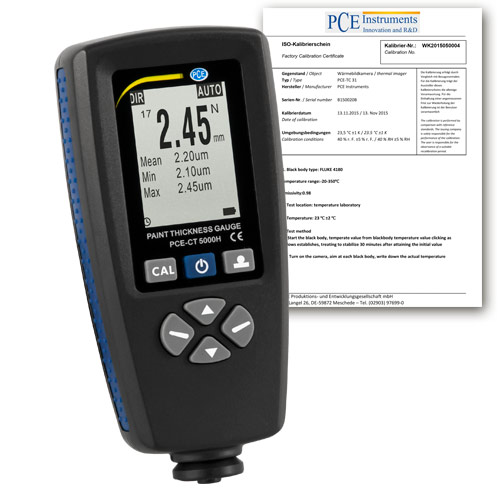

PCE CT 5000H-ICA Coating Thickness Gauge

Specifications

Measuring range Type F:0 ... 5000 μm / 0 ... 5 mm / 0 ... 196 mils

Measuring accuracy Type F:± (2% + 1 μm)

Resolution Type F:0 ... 99.9 μm: 0.1 μm, 100 ... 999 μm: 1 μm

> 1000 μm: 0.01 mm

Measuring principle Type F:Magnetic induction

Smallest thickness of the base material:0.02 mm

Measuring range Type N:0 ... 3000 μm / 0 ... 3 mm / 0 ... 118 mils

Measuring accuracy Type N:± (2% + 1 μm)

Resolution Type N:0 ... 99.9 μm: 0.1 μm, 100 ... 999 μm: 1 μm

> 1000 μm: 0.01 mm

Measuring principle Type N:Eddy current

Smallest thickness of the base material0.05 mm

Calibration:One-point to four-point calibration, zero calibration

Data storage:Direct measurement (no measurement data storage), four data groups (automatic measurement data storage of up to 2000 measured values)

Statistical functionsNumber of measurements, average, minimum, maximum, standard deviation

Measurement units:μm, mm, mils

Alarm:Alarm limits adjustable, alarm symbol is displayed when limits are exceeded

Minimum radius of curvature (convex):5 mm / 0.2 in

Minimum radius of curvature (concave):25 mm / 1 in

Smallest measuring surface:Diameter of 20 mm / 0.8 in

Maximum measuring rate2 x per second

Data interfaceData transfer via USB

Power supply:2 x 1.5V AAA batteries

Menu languagesGerman, English, Russian, Chinese

Operating conditions:0 ... 50°C / 32 ... 122°F, 20 ... 90% RH

Storage conditions:-10 ... 60°C / 14 ... 140°F

Standards:CE ROHS FCC

Dimensions:110 x 53 x 24 mm / 4.33 x 2.09 x 0.95 in

Material housing:ABS plastic

Weight:92 g / < 1 lb

Dilivery Contents

1 x PCE-CT 5000H coating thickness gauge

2 x Zero calibration plates (ferrous and non-ferrous)

5 x Calibration plates

2 x 1.5V AAA batteries

1 x USB cable

1 x PC-compatible software

1 x User manual

1 x Carrying case

1 x ISO calibration certificate
