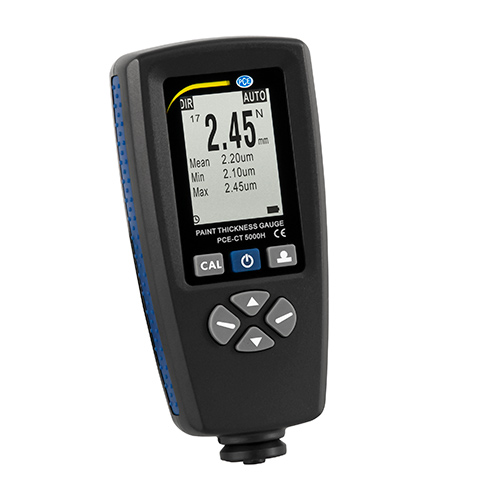

PCE CT 5000H Material Coating Thickness Meter (0~5000 μm)

Specification

Probe: Type F and Type N

Measuring range Type F: 0 ... 5000 μm / 0 ... 5 mm / 0 ... 196 mils

Measuring accuracy Type F: ± (2% + 1 μm)

Resolution Type F: 0 ... 99.9 μm: 0.1 μm, 100 ... 999 μm: 1 μm

> 1000 μm: 0.01 mm

Measuring principle Type F: Magnetic induction

Smallest thickness of the base material: 0.02 mm

Measuring range Type N: 0 ... 3000 μm / 0 ... 3 mm / 0 ... 118 mils

Measuring accuracy Type N: ± (2% + 1 μm)

Resolution Type N: 0 ... 99.9 μm: 0.1 μm, 100 ... 999 μm: 1 μm

> 1000 μm: 0.01 mm

Measuring principle Type N: Eddy current

Smallest thickness of the base material: 0.05 mm

Calibration: One-point to four-point calibration, zero calibration

Data storage: Direct measurement (no measurement data storage), four data groups (automatic measurement data storage of up to 2000 measured values)

Statistical functions: Number of measurements, average, minimum, maximum, standard deviation

Measurement units: μm, mm, mils

Alarm: Alarm limits adjustable, alarm symbol is displayed when limits are exceeded

Minimum radius of curvature (convex): 5 mm / 0.2 in

Minimum radius of curvature (concave): 25 mm / 1 in

Smallest measuring surface: Diameter of 20 mm / 0.8 in

Maximum measuring rate: 2 x per second

Data interface: Data transfer via USB

Power supply: 2 x 1.5V AAA batteries

Menu languages: German, English, Russian, Chinese

Operating conditions: 0 ... 50°C / 32 ... 122°F, 20 ... 90% RH

Storage conditions: -10 ... 60°C / 14 ... 140°F

Standards: CE ROHS FCC

Dimensions: 110 x 53 x 24 mm / 4.33 x 2.09 x 0.95 in

Material housing: ABS plastic

Weight: 92 g / < 1 lb

Delivery contents

1 x PCE-CT 5000H material coating thickness meter

2 x Zero calibration plates (ferrous and non-ferrous)

5 x Calibration plates

2 x 1.5V AAA batteries

1 x USB cable

1 x PC-compatible software

1 x User manual

1 x Carrying case
