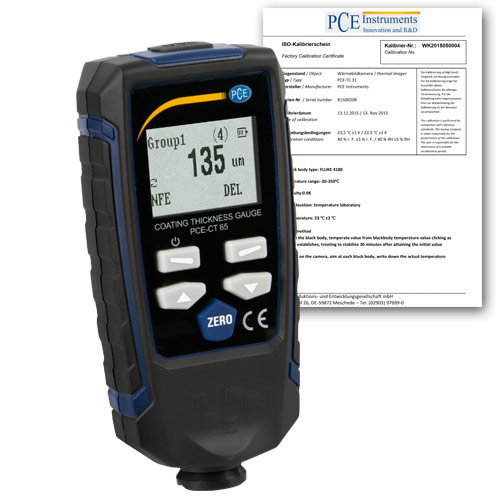

PCE CT 65-ICA Coating Thickness Gauge

Specifications

Ferrous metals

Principle:Magnetic induction

Measuring range:0 ... 1350 µm / 0 ... 53.1 mils

Accuracy

0 ... 1000 µm: ±(2.5 % ±2 µm)

1000 µm ... 1350 µm: ±3.5 %

0 ... 39.3 mils: ±(2 % ±0.08 mils)

39.3 mils ... 53.1 mils: ±3.5 %

Resolution

0 ... 100 µm: 0.1 µm

100 µm ... 1000 µm: 1 µm

in 1000 mm ... 1350 µm: 0.01 mm

0 ... 10 mils: 0.01 mils

10 mils ... 53.1 mils: 0 ... 1 mils

Smallest surface:Ø 7 mm / Ø 0.3 in

Min. curvature radius:1.5 mm / 0.05 in

Min. substrate thickness:0.5 mm / 0.02 in

Non-ferrous metals

Principle:Eddy current

Measuring range:0 ... 1350 µm / 0 ... 53.1 mils

Accuracy

0 ... 1000 µm: ±(2.5 % ±2 µm)

1000 µm ... 1350 µm: ±3.5 %

0 ... 39.3 mils: ±(2 % ±0.08 mils)

39.3 mils ... 53.1 mils: ±3.5 %

Resolution:0 ... 100 µm: 0.1 .mu.m

100 µm ... 1000 µm: 1 µm

in 1000 mm ... 1350 µm: 0.01 mm

0 ... 10 mils: 0.01 mils

10 mils ... 53.1 mils: 0 ... 1 mils

Smallest surface:Ø 5 mm / Ø 0.2 in

Min. curvature radius:3 mm / 0.1 in

Min. substrate thickness:0.3 mm / 0.01 in

Units:µm, mils

Functions:Alarm function, display lighting, automatic shutdown, calibration, memory function

Memory option:30 storage groups with a capacity of 50 measurements each = 1500 measurements total

Interface:USB

Environmental conditions:0 ... +40° C / 32° F ... 104° F / 20 % ... 90 % rh

Power supply:2 x 1.5 V AAA batteries

Dilivery Contents

1 x PCE-CT 65 coating thickness gauge

2 x 1.5 V AAA batteries

2 x calibration plates (aluminum and iron)

1 x USB cable

1 x user manual

1 x carrying case

1 x ISO calibration certificate
