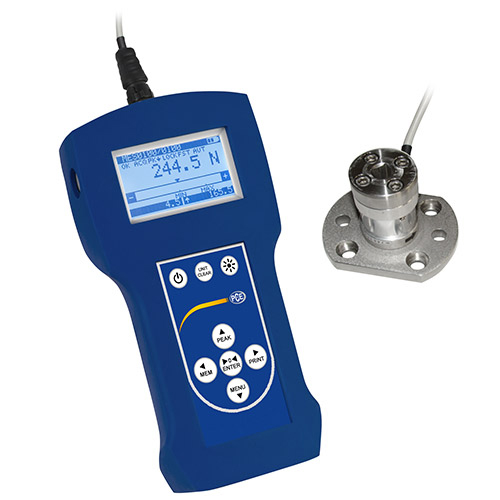

PCE FB 2TW Torque Meter (2 Nm, 0.001 Nm, ±0.5 %)

Specification

Measurement range / resolution: 2 Nm (0.2 kgfm) / 0.001 Nm

Accuracy: ±0.5 % of measurement range

Units of measurement: Nm, Ncm, kgfm, lbfin, gfm

Calibration: possible with external F2 weights

Max. Overload: 50 % of measurement range

Sampling rate: freely adjustable up to 1,000 values / s

Functions: PEAK function (MIN - MAX Hold) / limit value measurement / real-time measurement with software

Display graphical LC display: 61 x 34 mm / automatic display alignment / backlight

Menu: multilingual: German / English / Spanish

Memory: internal memory and mini SD card memory.

(internal memory is limited to a series of measurement of up to 6,400 measurements)

Storage:

manual - by keystroke

automatic - (adjustable)

Interface: serial RS-232, 9-pole and USB

OPTIONAL: switch contact output

MIN / MAX / OK (see below) + 1 input

Software: incl. downloadable PC software for evaluation and control

Operating conditions: - 10 ... +40 °C

Power supply: 4 x Ni-MH 2700 mAh AA rechargeable batteries (exchangeable) or mains adaptor ~230 V/12 V; 1.2 A incl.

Auto Power Off function adjustable

Battery life: approx. 20 hours (without backlight approx. 45 h)

 Dimensions evaluation unit: 210 x 110 x 40 mm / 600 g

 Dimensions torque transducer:

up to 10 Nm Ø 90 (Ø 40) / 80 mm / 700 g

above 10 Nm 1500 g Ø 75 / 90 mm / 1500 g

Cable length of external torque measuring cell: approx. 2 m

Delivery contents

1 x torque wrench tester

1 x external torque sensor

1 x RS-232 data cable

1 x SD Memory Card incl. Reader

4 x AA batteries

1 x mains adaptor

1 x Carrying Case
