PCE-FM 200-ICA Dynamometer (0~200 N)

Specification

Measuring range: 0 ... 200 N

Resolution:0.1 N

Pressure calibration:1 Mpa

Load cell:integrated load cell with M6 connection

Measuring range:1 ... 100 % of the full scale

Measurement accuracy:±0.5 %

Units:n, kg, lb

Display:LCD

Operating temperature:+10 ... +30 °C / +50 ... +86 °F

Relative humidity:15 ... 80 %

Working conditions:the device must not be located near sources of vibration or corrosive substances

Weight:1 kg / 2.2 lb

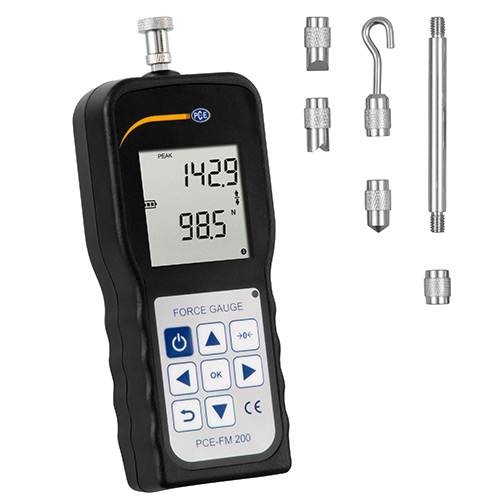

Delivery contents

1 x Dynamometer PCE-FM 200

1 x Evaluation software

1 x Flathead adapter

1 x Hook adapter

1 x Ball head adapter

1 x Chisel head adapter

1 x Notch head adapter

1 x Adapter for extension rod

1 x Extension rod (65 mm / 2.55")

1 x USB cable

1 x Charging adapter (240 V)

1 x Equipment case

1 x Operation manual

1 x ISO calibration certificate

Manual
