Specification
Measurement ranges:
Voltage AC:0 ... 750V
Voltage DC: 0 ... 1000V
Resistance: 0 ... 200 Ω / 200 ... 2000 Ω
Insulation resistance0 ... 200 MΩ / 200 ... 2000 MΩ
Resolution : Voltage AC: 1V
Voltage DC: 1V
Resistance: 0.1 Ω / 1 Ω
Insulation resistance: 100 kΩ to1 MΩ
Accuracy: Voltage AC: ±1.2% ± 10 digits
Voltage DC: ±0.8% ± 3 digits
Resistance: ±1.0% ± 2 digits
Insulation resistance: ±3.5% ± 5 digits
Test voltages:
250V - 200 MΩ
500V - 200 MΩ
1000V - 2000 MΩ
Test current: Whistle: ≤40 Ω, test current ≤200-mA
Power: 6 AA batteries
Operating conditions: 0 ... 40°C / 32 ... 104°F, <80% r.h.
Dimensions: 200 x 92 x 50 mm / 7.9 x 3.6 x 2 in
Weight: 700 g / 1.5 lbs
Standards: IEC10101, CAT III 1000V
Delivery contents

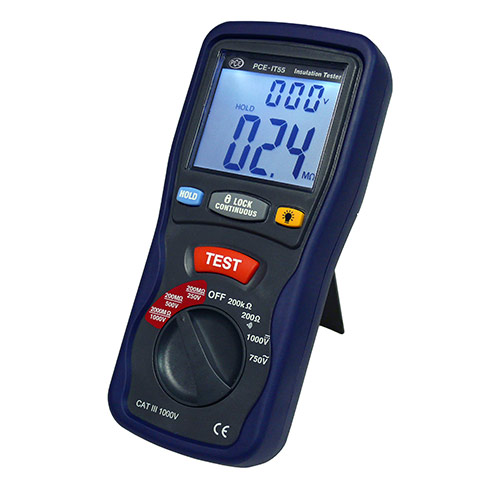

1 x PCE-IT 55 Insulation tester
1 x Test cables
1 x Extractable clamp with 1 m / 3.3 ft cable
6 x Batteries
1 x Carrying case
1 x User's manual (see image)
