Specification
Voltage (ACV)
Measurement range; Resolution; Accuracy
10 V ... 600 V (phase to neutral); 0.1 V; ±(0.5 % + 0.5 V)
10 V ... 600 V (phase to neutral)
Current (ACA)
Measurement range; Resolution; Accuracy
20 A; 0.001 A (< 10 A),0.01 A (≥ 10 A); ±(0.5 % + 0.1 V)
200 A; 0.01 A (< 100 A),0.1 A (≥ 100 A); ±(0.5 % + 0.5 A)
1200 A; 0.1 A (< 1000 A), 1 A (≥ 1000 A); ±(0.5 A + 5 A)
Active power
Measurement range; Resolution Accuracy
0 KW ... 9.999 KW; 0.001 KW; ±(1 % + 0.008 KW)
10 KW ... 99.99 KW; 0.01 KW; ±(1 % + 0.008 KW)
100 KW ... 999.9 KW; 0.1 KW; ±(1 % + 0.8 KW)
1 MW ... 9.999 MW; 0.001 MW; ±(1 % + 0.008 MW)
Apparent power
Measurement range; Resolution; Accuracy
0 KVA ... 9.999 KVA; 0.001 KVA; ±(1 % + 0.008 KVA)
10 KVA ... 99.99 KVA; 0.01 KVA; ±(1 % + 0.08 KVA)
100 KVA ... 999.9 KVA; 0.1 KVA; ±(1 % + 0.8 KVA)
1 MVA ... 9.999 MVA; 0.001 MVA; ±(1 % + 0.008 MVA)
Reactive power
Measurement range; Resolution; Accuracy
0 KVAR ... 9.999 KVAR; 0.001 KVAR; ±(1 % + 0.008 KVAR)
10 KVAR ... 99.99 KVAR; 0.01 KVAR; ±(1 % + 0.08 KVAR)
100 KVAR ... 999.9 KVAR;0.1 KVAR; ±(1 % + 0.8 KVAR)
1 MVAR ... 9.999 MVAR; 0.001 MVAR ±(1 % + 0.008 MVAR)
Active energy
Measurement range; Resolution; Accuracy
0 KWh ... 9.999 KWh; 0.001 KWh; ±(1 % + 0.008 KWh)
10 KWh ... 99.99 KWh; 0.01 KWh; ±(1 % + 0.08 KWh)
100 KWh ... 999.9 KWh; 0.1 KWh; ±(1 % + 0.8 KWh)
1 MWh... 9.999 MWh; 0.001 MWh; ±(1 % + 0.008 MWh)
Apparent energy
Measurement range; Resolution Accuracy
0 KVAh ... 9.999 KVAh; 0.001 KVAh; ±(2 % + 0.008 KVAh)
10 KVAh ... 99.99 KVAh; 0.01 KVAh; ±(2 % + 0.08 KVAh)
100 KVAh ... 999.9 KVAh; 0.1 KVAh; ±(2 % + 0.8 KVAh)
1 MVAh... 9.999 MVAh; 0.001 MVAh; ±(2 % + 0.008 MVAh)
Reactive energy
Measurement range; Resolution; Accuracy
0 KVARh ... 9.999 KVARh; 0.001 KVARh; ±(2 % + 0.008 KVARh)
10 KVARh ... 99.99 KVARh; 0.01 KVARh; ±(2 % + 0.08 KVARh)
100 KVARh ... 999.9 KVARh; 0.1 KVARh; ±(2 % + 0.8 KVARh)
1 MVARh... 9.999 MVARh; 0.001 MVARh; ±(2 % + 0.008 MVARh)
Power factor
Measurement range Resolution Accuracy
0 ... 1 0.01 ±0.04
Phase angle
Measurement range; Resolution; Accuracy
-180º ... 180º; 0.1º; ±1º
Frequency
Measurement range; Resolution; Accuracy
45 Hz ... 65 Hz; 0.1 Hz; 0.1 Hz
General specifications
Display: 3.7" / 94.0 mm LCD (320 x 240 pixel) with backlight
Electrical properties: ACV, ACA, active power, apparent power, power factor, phase angle, mains frequency
Voltage range: 10 ... 600 ACV, automatic range selection
Safety standards: Complies with IEC 1010, CAT III 600 V
ACV input resistance: 10 MΩ
Operation frequency of current clamps: 40 Hz ... 1 kHz
Tested operation frequency of current clamps: 45 Hz ... 65 Hz
Overload protection: ACV / 720 V RMS
ACA: 1300 A with current clamps
Memory: SD card, up to 16 GB
Real-time measurement rate: 1 second
Data logger: Yes, fully integrated
Data logger measurement rate: Adjustable, 2 ... 7,200 seconds
Data output: USB or RS-232, depending on the connection cable
Operating temperature: 0º C ... 50º C / 32° F ... 122° F
Operating humidity: < 80 % RH
Power supply: 8 x 1.5 V AA batteries / AC power adapter
Input current: Meter: 300 mA DC; Clamp: 34 mA DC
Max. diameter: 2" / 50 mm
Weight Meter: 948 g / 2.09 lbs (with batteries)
Clamp: 467 g / 1.03 lbs (with cable)
Dimensions:
Meter: 225 x 125 x 64 mm / 8.8 x 4.9 x 2.5"
Clamp: 210 x 64 x 33 mm / 8.2 x 2.5 x 1.2"
Jaw: 86 mm / 3.3" (exterior)

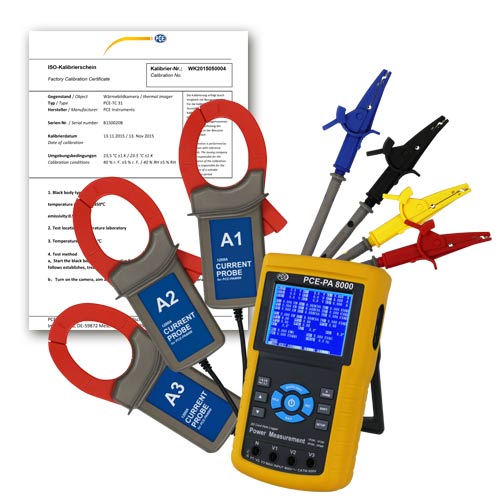

Delivery contents
1 x PCE-PA 8000 Power Analyzer
3 x Current clamps
4 x Alligator clips
4 x Test leads
1 x SD card
8 x 1.5 V AA batteries
1 x AC power adapter
1 x User manual
1 x Carrying case
1 x ISO Calibration Certificate
