Specifications
Measuring range temperature: 0 ... 50°C / 32 ... 122°F
Resolution: 0.1°C / 0.18°F
Accuracy: ± 1°C / 1.8°F
Measuring range pressure: ± 200 Pa
Resolution: 0.01 / 0.1 Pa
Accuracy: ± 1% of final value
Nominal pressure: 100 Pa
Overpressure: 1 kPa
Burst pressure: 20 kPa
Media: air
Measuring rate: 10 Hz
Measurement units: Pa, hPa, kPa, MPa, mbar, bar, ATM, kg / cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF
Pressure: Differential; Pressure relative pressure (if neg. Pressure connection open)
Pressure connections: 5 mm nipple for quick connectors
Max, Min and Hold function: Yes
Data logger: 1024 memory slots
1 s ... 255 h Recording time per memory location
1 s ... 24h recording interval
Medium: For air and non-explosive gasses
Zero correction: Yes, with a zero key
Averaging: Yes, between 0.1 ... 9.9 s
Display: Graphic LCD with backlight
Protection: IP41
Power supply: 2 x 1.5V AA battery / 1.2V NiMh battery
5V / 500-mA USB power adapter
Current consumption: 50-mA (with backlight); 10-mA (without backlight)
Operating temperatur: 0 ... 50°C / 32 ... 122°F
Storage temperature: 10 ... 55°C / 50 ... 131°F
Dimensions: 145 x 85 x 35 mm / 5.7 x 3.3 x 1.4 in
Weight: About 285 g / < 1 lb
Dilivery Contents

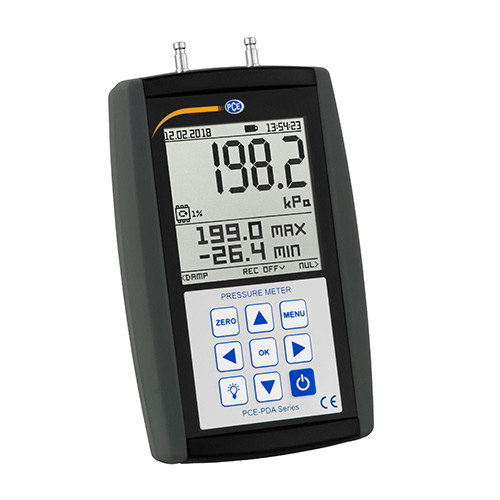

1 x Differential pressure meter PCE-PDA 01L
2 x 1.2V AA NiMh batteries
1 x USB power supply
1 x Micro USB cable
1 x User manual
