Specifications
Display modes:
Measurement: mA / V / Ω / RTD
Simulation: Ω / RTD
Temperature units:° C / ° F / K
Current of RTD measurement:About 300 μA
Maximum current simulation:3-mA (0 ... 650 Ω) ; I < 2V / Rsim (650 ... 4000 Ω)
Maximum input voltage:30V DC
Temperature coefficient:<30 ppm
Input impedanceVoltage measurement:> 1 MΩ
Current measurement: 10 Ω
Response time:<100 ms
Refresh rate display:10 Hz
Data storage:Internal memory ; 150000 readings
InterfaceUSB 2.0
Display:2.4" TFT LCD ; 240 x 320 pixels ; LED illuminated
Output voltage current loop:24V DC / 24-mA
HART mA loop resistance:250 Ω ± 20%
Special features:
Step and ramp function
Automatic and manual
mode √x, x2: For the measuring function
Continuity test:Adjustable threshold up to 100 Ω
Power supply:3.7V / 2300-mAh Li-ion battery
Charging time:About 5 h
Power adapter:Input: 100 ... 240V AC / 50/60 Hz ; Output: 5V / 1 A DC
Battery life:
Approx. 15 h: Simulation and measurement with low LCD illumination
Approx. 8 h: Measurement with low LCD illumination
Dimensions:162 x 82 x 40 mm / 6.4 x 3.2 x 1.6 in
WeightAbout 300 g / < 1 lb
Degree of protectionIP20
Operating conditions:
Battery operation: 0 ... 55°C / 32 ... 131°F, 30 ... 90% RH Mains operation: 0 ... 45°C / 32 ... 113°F, 30 ... 90% RH
Storage conditions:-20 .. 60°C / -4 ... 140°F, 30 ... 90% rh non-condensing
Heating time:About 15 minutes
Dilivery Contents

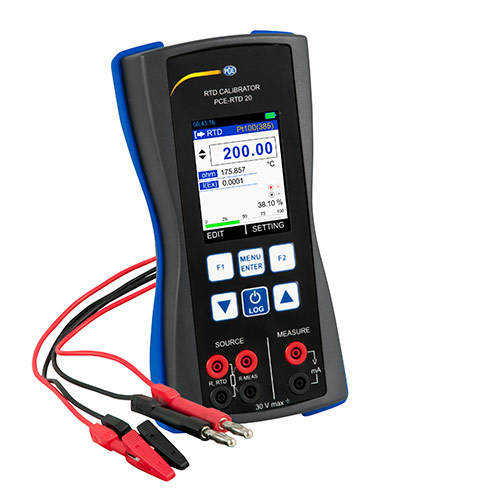

1 x RTD Current calibrator PCE-RTD 20
3 x Laboratory cables with 2 mm plug
3 x 2 mm laboratory cables with alligator clips
3 x Adapter 2 mm on 4 mm laboratory cable
1 x Mini USB cable
1 x Power supply 5V / 1 A
1 x Carrying bag
1 x Software
1 x User manual
