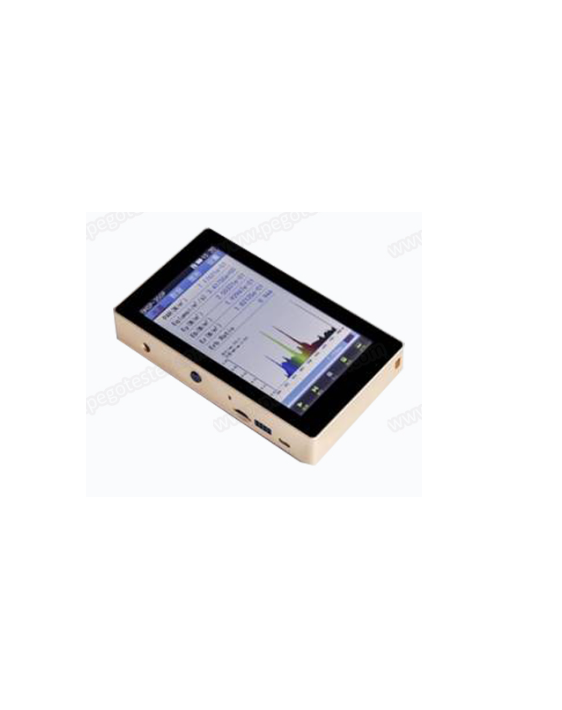

PEGO OHSP-350 Portable Spectrum-Illuminance Meter (5-200000lx, 0.2nm)

Spectrum: Long optical cross asymmetric system

Illuminance: 5-200000lx

Spectrum width (FWHM): 2NM

Spectrum resolution: 0.2nm

Sensor: CCD

Sensor array points: 3648

Zero mode: Auto zeroing

Color temperature: 1000-100000K

X,Y accuracy: ±0.001 | At condition of luminaire A, 2856K, 10000LX

X,Y repeatability: ±0.0005 | At condition of luminaire A, 2856K, 10000LX

Illuminance accuracy: ±4% | At condition of luminaire A, 2856K, 10000LX

Rendering accuracy: ±1.5% | At condition of luminaire A, 2856K, 10000LX

Integral time: 50us-20000ms

Wavelength accuracy: ±0.5nm

LCD screen: 5 inches, IPS touch screen

Wavelength interval:1nm

Resolution: 480*854

AD resolution: 16 bits, 250KSPS

Test mode: Single/continuous

Language: Chinese/English

Exposure mode: Auto/manual

File save: 8GB SD card

Spectrum display

6 parameters for option to display

Spectrum curve

Data output connector: SD Card/USB2.0

Dimension (L*W*H): 163*81*25.8mm

Data display: Up and down scroll to display all the data

Detector port: Ø 10mm

Diagram display

CIE1931 chromaticity diagram

CIE1960 chromaticity diagram

CIE1976 chromaticity diagram

SDCM diagram

CRI circular diagram

CRI histogram

Weight: 500g

Operation temperature: 0~35°C

Storage temperature: -10~40°C

continuous working hours: >10hours

Battery capacity: 4000mAh

Structure: aluminum alloy

Portable Spectrum   illuminance meter is an equipment integrated the test functions of spectrum, colirmetry, illumiance, radiate and etc. Adopts 5 inch LCD screen to display all kinds of parameters and curve at real time, built-in CCD sensor and advanced information processing chip to ensure the stability of the optical signal. It is easy to operate and can realize site test. This equipment can not only test LED, CFL and HID luminaires, and also can apply to the conditions of stage design, architectural lighting, grow lights and engineering application.
