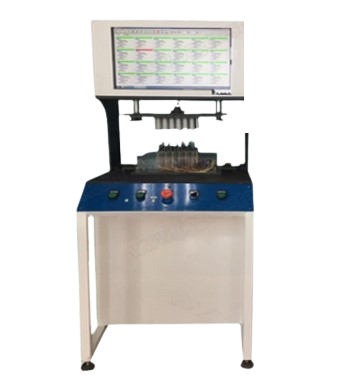

PEGO PG-2050 LED Power Driver Tester (45Hz~5KHz, 1V~300V, 1mA~6A)

Input (AC): measuring the input voltage, current, power, power factor, frequency, total harmonic and harmonic components @ 0~50 times and crest factor.

Frequency range: 45Hz~5KHz

Voltage range: 1V~300V

Current range: 1mA~6A

Voltage and current test accuracy: ±(0.1% RD+0.1% FS+1 digit)

Power range: 0.1W~1800W

Power test accuracy:   ±(0.1% RD+0.1% FS+1 digit)

Power factor range: 0.000~+1.000

Power factor test accuracy: ±(0.1% RD+0.1% FS+1 digit)

Harmonic order: 0~50

Output (DC): Measuring lamp voltage (average voltage, RMS voltage), lamp current (average current, RMS), lamp power, ripple current

Voltage range: 1V~300V

Current range: 1mA~6A

Voltage and current test accuracy:   ±(0.1% RD+0.1% FS+1 digit)

Power range: 0.1W~1800W

Power test accuracy:   ±(0.1% RD+0.1% FS+1 digit)

Ripple current range: 1mA~6A

Ripple current accuracy: ±(0.1% RD+0.1% FS+1 digit)

LED power driver tester meets the requirement of IEC62384:2006, 8 windows to display input and output characteristics, includes voltage, current, power, power factor, frequency, phase angle, total harmonic, harmonic component@ 0~50. Fast test speed, data can be gotten at 1s.
