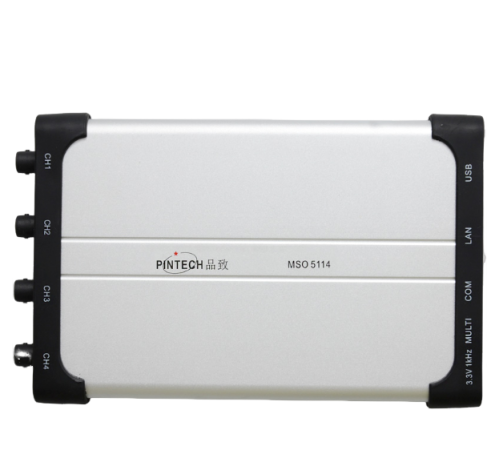

Pintech MSO 5114 PC oscilloscope (four channels, 100MHz)

Bandwidth: DC-100MHz

Channel: 4

Sample Rate: 1GSa/s

Rise time（BNC typical）: ≤3.5 ns

Time base scope: 1ns/div～100s/div，step by 1～2～5

Sampling method: Normal sampling, peak detection, average value

Storage depth: 5K

Input coupling: DC,AC,ground

Input impedance: 1MΩ±2%，10pF±5pF parallel

Time base accuracy: ±25ppm

Interval（△T) accuracy:

Single: ±(1 sample interval + 25ppm x reading + 0.6ns),

Average >16 : ±(1sample interval time + 250ppm x reading + 0.4ns)

Vertical Sensitivity: 2mV/div～5V/div

Vertical resolution: 8bits

Input Voltage: 40V peak （DC + AC peak）

Probe attenuation coefficient: 1X，10X，100X，1000X

Isolation between channels: 50Hz:100:1，10MHz:40:1

Waveform  Interpolation: Sin(x)/x

Single bandwidth: Full bandwidth

Low frequency response （AC coupling，-3db): ≥105Hz (BNC)

DC gain accuracy: ±3%

Interpretation of the scope of suppression: 100ns ～ 10s

Power: ≤8W

size: 190mm(L)×18mm（H）×120mm（W）
