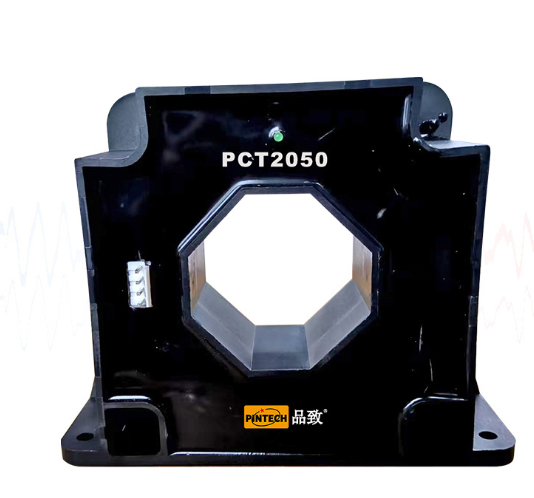

Maximum measurement of continuous DC current IPN DC: ±2000A
Maximum measurement of continuous RMS current IPN: 1400A
Measure the current range IPM(DC): ±2400A
Current transfer ratio KN: 5000:1
Output current IS: ±400mA
Precision (DC): ±0.03%
Bandwidth BW(±3dB): 50kHz
Maximum overload capacity @ single pulse 100ms: ±2400A
Power supply voltage: ±24V
Power consumption (IPwr): ±410mA
Maximum measuring aperture: 60mm
Secondary interface: VH3.96-4P
