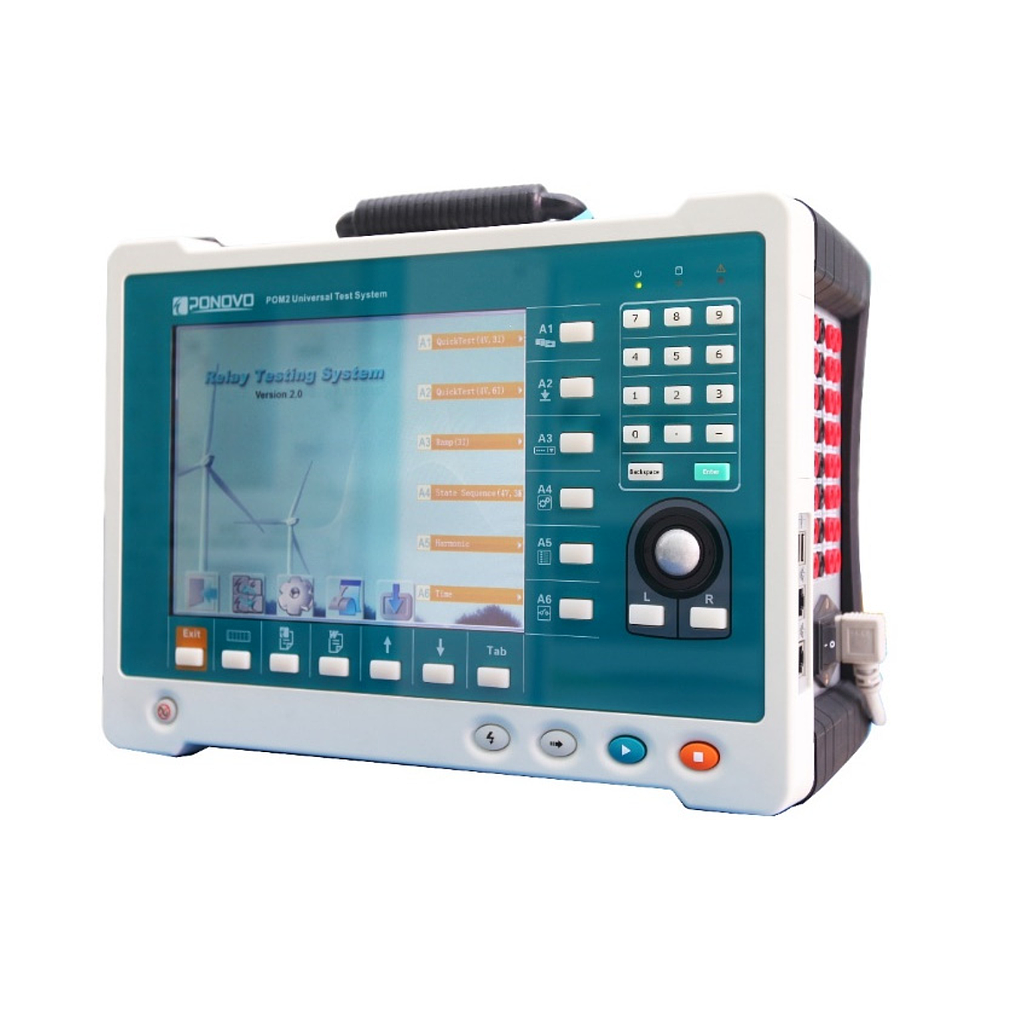

Ponovo POM2-6143 Universal Test System

Voltage generators

Setting range

4‐phase ac(L‐N): 4×0~300V

1‐phase ac(L‐L): 1×0~600V

dc (L‐N): 4×±0~300V

dc (L‐L): 1×±0~600V

Power

4‐phase ac(L‐N): 4×75VA typ., at 300V; 4×50VA guar., at 300V

3‐phase ac(L‐N): 3×100VA typ., at 300V; 3×85VA guar., at 300V

1‐phase ac(L‐L): 1× 200VA typ., at 600V; 1× 170VA guar., at 600V

dc (L‐N): 4×100W at 300 V

Accuracy error:

< 0.08 % rd.+0.02 % rg. guar., at 0~300 V

< 0.02 % rd.+0.01 % rg. typ., at 0~300 V

Ranges: 300V

Resolution: 10mV

Distortion: < 0.05 % typ., (< 0.1 % guar.)

Current generators

Setting range

6‐phase ac(L‐N): 6×0~15A

3‐phase ac(2L‐N): 3×0~30A

1‐phase ac(3L‐3L): 1×0~30A (10A/phase)

1‐phase ac(6L‐N): 1×0~90A

dc (L‐N): 6×±0~10A

dc (6L‐N): 1×±0~60A

Power

6‐phase ac(L‐N): 6×105VA at 15A

3‐phase ac(2L‐N): 3×210VA at 30A

1‐phase ac(3L‐3L): 1×420VA at 30A

dc(L‐N): 6×100W at 10A

dc(6L‐N): 600W at 60A

Max compliance voltage(L‐N)(L‐L): 10Vpk/20Vpk

Accuracy error:

< 0.08 % rd.+0.02 % rg. guar., at 0~15A

< 0.02 % rd.+0.01 % rg. typ., at 0~15A

Ranges: 15A or 30A

Resolution: 1mA

Distortion: < 0.05 % typ.,(< 0.1 % guar.)

Phase

Angle range: ‐360°~+360°

Accuracy: <0.05° typ., <0.1° guar.at 50/60Hz

Resolution: ±0.001°

Operation temperature: 0~+50°C

Storage temperature: ‐25~+70°C

Relative humidity: 5~95% non‐condensing

Weight: 16kg

Dimensions (W x H x D): 390mm ×287mm×214mm
