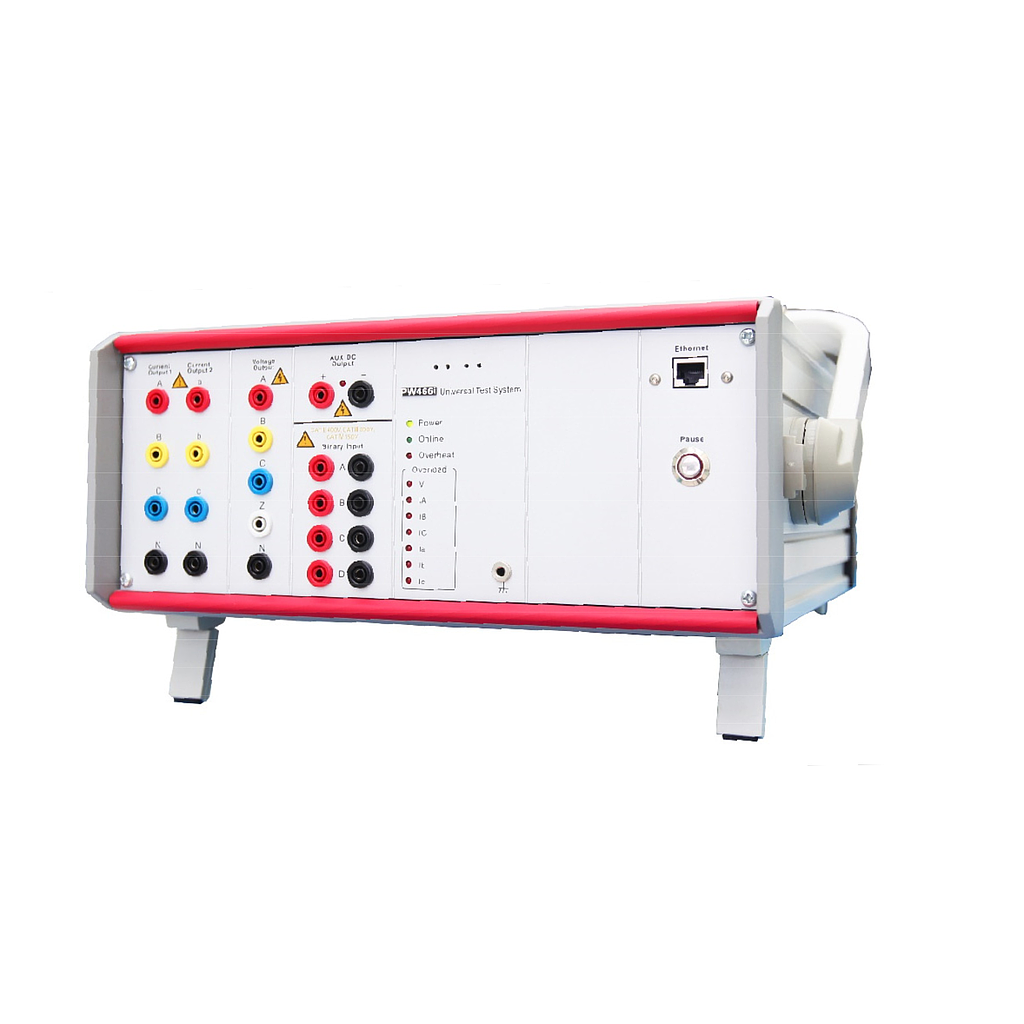

Ponovo PW466i Protective Relay Test Set

Voltage generators

Setting range

6‐phase ac(L‐N): 6×0~150V

1‐phase ac(L‐L): 1×0~300V

dc (L‐N): 6×±0~150V

dc (L‐L): 1×±0~300V

Power

6‐phase ac(L‐N): 6×30VA at 150V

3‐phase ac(L‐N): 3×60VA at 150V

1‐phase ac(L‐L): 1×100VA at 300V

dc (L‐N): 6×40W at 150 V

Accuracy: error < 0.08% rd.+0.02% rg. guar./ error < 0.04% rd.+0.01% rg. typ.

Ranges: 150V

Resolution: 5mV for 150Vac

Distortion: < 0.05% typ./ (< 0.1% guar.)

Current generators

Setting range

6‐phase ac(L‐N): 6×0~20A

3‐phase ac(2L‐N): 3×0~40A

1‐phase ac(6L‐N): 1×0~120A

dc (L‐N): 6×±0~20A

dc (6L‐N): 1×±0~120A

Power

6‐phase ac(L‐N): 6×180VA typ., at 20A/ 6×150VA guar., at 15A

3‐phase ac(2L‐N): 3×320VA typ., at 40A/ 3×240VA guar., at 30A

1‐phase ac(6L‐N): 1×600VA typ., at 120A/ 1×450VA guar., at 90A

1‐phase ac(L‐L): 1×450VA typ., at 30A

Max compliance voltage(L‐N)(L‐L): 15Vpk/30Vpk

dc (L‐N): 6×100W at 10A

dc (6L‐N): 1×480W at 60A

Accuracy: error < 0.15% rd.+0.05% rg. guar./ error < 0.08% rd.+0.02% rg. typ.

Ranges: 20A or 40A

Resolution: 1mA

Distortion: < 0.05% typ.(< 0.1% guar.)

8 binary inputs, 4 binary outputs

Power supply

Nominal input voltage: 110~240Vac

Permissible input voltage: 90~260Vac

Nominal frequency: 50/60Hz

Permissible frequency: 45~65Hz

Weight: 20kg

Dimensions (W x H x D): 360mm ×157mm×367mm
