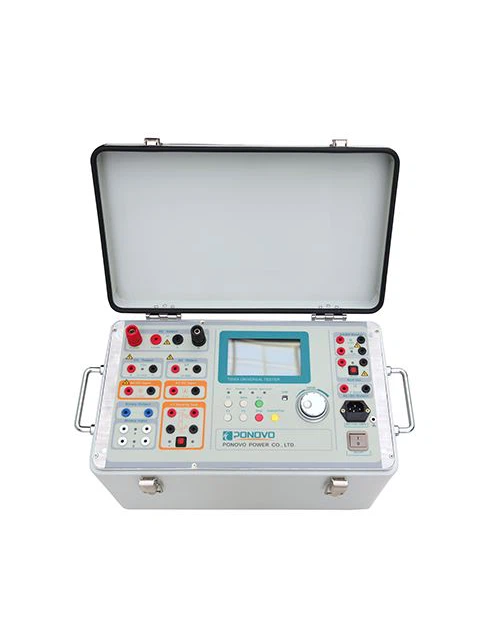

Ponovo T200A Single Phase Relay Testing Kit

High power AC current output (I1)

Range: 0.5A-20A; 10-250A

Accuracy: 土0.5%

Output voltage: 130V-100V; 10V-8V

Power: 2000VA (20A); 2000VA (250A)

Output: 250A; 50A; <50A

Time: 120s; 3000s; continuous

High power AC voltage output (Ul)

Range: 10-500V

Accuracy: 士0.5%

Power: 1200VA(400V)

Load time <IA : continuous/ 1-3A: Max 60min

High power DC voltage output (Ude)

Range: 10-300V

Accuracy: 士0.5%

Power (300V): 750W(300V)

Load time Output : <1A/ >1A

Time: continuous/ Max 60min

Binary inputs

Number: 2

Input characteristics: 30-250V DC, or dry contact

Time resolution: ±lms(0.001-ls)土0.1%(1-9999.999s)

Max. measuring time: 9999.999s

Binary output

Number: 1

Break capcity AC: V max 250V AC / Imax 8A/ Pmax 2000VA

Break capacity DC: Vmax 250V DC/ Imax 8A / Pmax I SOW

Power supply

Nominal input voltage: 110/220Vac

Permissible tolerance : -20% -+15%

Nominal frequency: 50/60Hz

Permissible frequency: 45-65Hz

Voltmeter

Range: 0-600V AC/DC

Accuracy: 士1%

Ammeter

Range: 0-6A AC/DC

Accuracy: 土1%

Operation temperature: -5 ~ +45°C

Operation humidity : 5 ~ 95 %, non-condensing

Weight: 23 kg

Dimensions (W x H x D): 440 mmx255mmx255 mm
