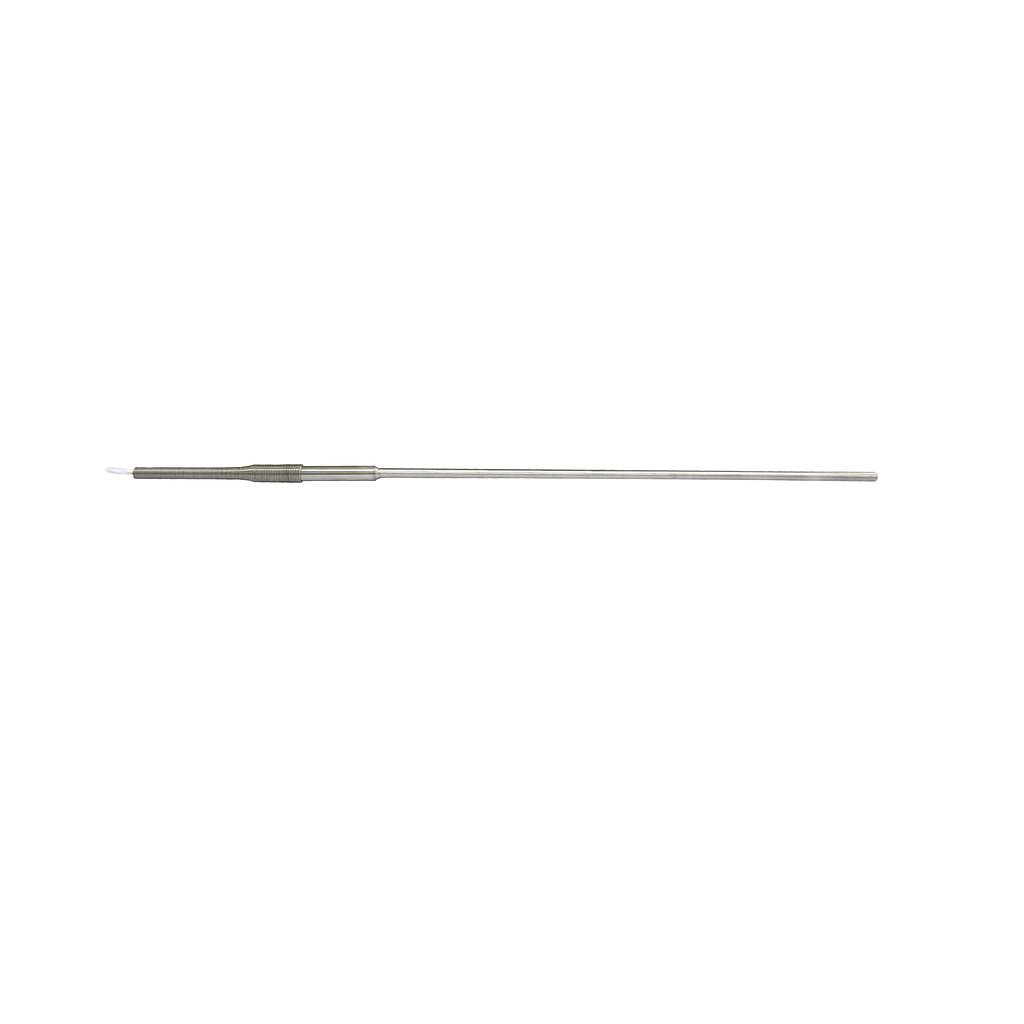

PRESYS 1/5 DIN-R Industrial Standard Probe (-200 ~ 420°C)

Resistance: 100 Ω @ 0 deg * C nominal).

Temperature Resistance Coefficient: 0.00385 Ω / Ω / °C (nominal).

Usage Range: -200 to 420 deg * C maximum handle temperature of 150 deg * C

Sheath material: Compacted mineral insulation of high purity sheath in 316 stainless steel.

Mounting: 4 output wires with 22 AWG nickel plated copper.

Insulation Resistance: > 100 ΜΩ @ 50 Vdc @ 23 deg * C ambient temperature.

Long-term drift: plus/minus 0.035 deg * C @ 0 deg * C after 100 h of continuous use in 420 deg * C

Self-Heating: 50 mW/°C in an ice bath in 0 deg * C

Minimal Immersion: At least 100 mm.

Dimensional: 305 mm x ø 6.35 mm
