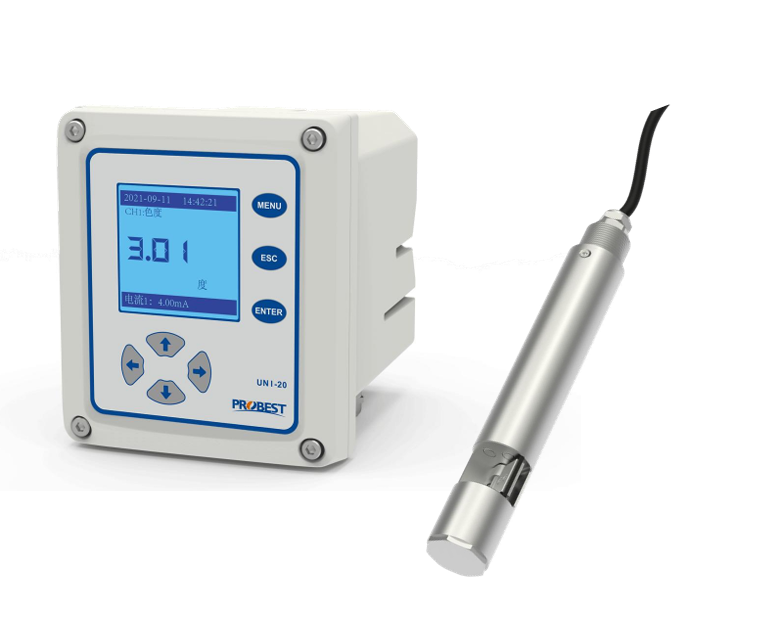

Probest PCT-600 Color online analyzer (0-100 degree; ±10%)

Measuring range:0-100 degree

Measurement accuracy: ±10% or±1degree, the bigger one

Repeatability: ≤5%

Resolution: 0.1 degree

Pressure range: ≤0.1Mpa

Sensor material

Body: SUS316L(normal),

Titanium alloy (seawater version); Cable PUR

Power source: AC:85-500 VAC,DC:9-36 VDC

Output: 3 way 4-20 mA

Relay: Three-way relay, program setting response parameters and response values

Communication protocol: MODBUS RS485

Storage temp.: -15 to 50℃

Operating temp.: 0 to 45℃(No frozen)

Dimension

Sensor:Dia. 34mm* L 237mm

Transmitter:145*125*162mm(L*W*H)

Weight: Sensor:0.8KG,Transmitter:1.35KG

Class of protection: Sensor:IP68/NEMA6P;Transmitter:IP66/ NEMA4X

Cable length: Standard: 10M cable,Can be extended into 100M

Datasheet

Applications

Real-time online monitoring of color of tap water, secondary drinking water and agricultural drinking water.

Real-time online color monitoring of surface water and other environmental water.
