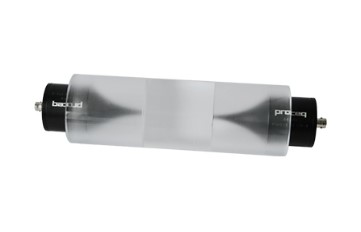

PROCEQ 54 kHz 54 kHz Exponential Transducer
Manufacturer: PROCEQ Model: 54 kHz P/N: 32540176 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Type: Single-Crystal
Frequency: 54 kHz ± 5 kHz
Bandwidth: <10 kHz
Driving voltage: -1000 V to +1000 V
Matching inductance: absent
Piezo electrical cell capacity: 2 nF
Connector type: BNC
Operating temperature: -20º C - +60º C
Contact surface diameter: 4 mm
Dimensions: Diameter: 49.7 mm
Length (without BNC connector): 99.43 mm
Length (including BNC connector):111.43 mm
Weight: 244 g
