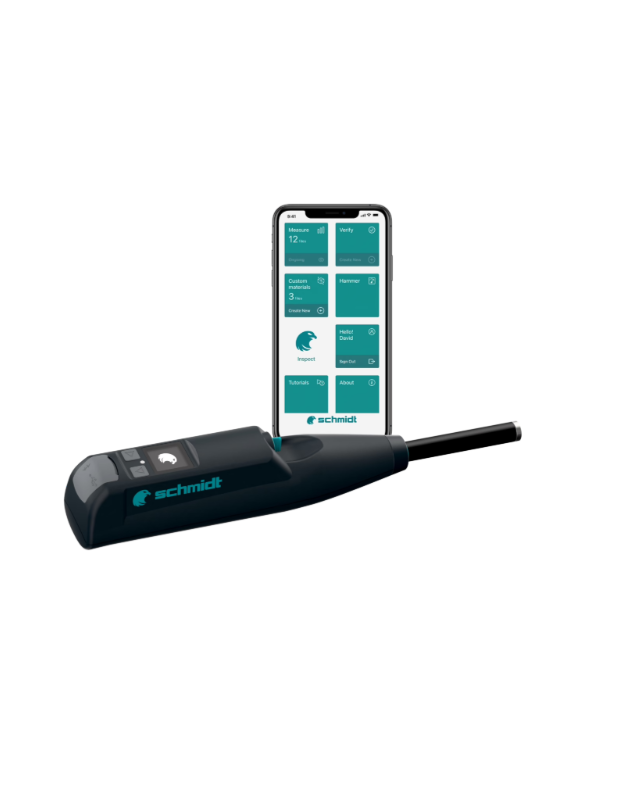

PROCEQ PS8000 Film & Paper Roll Hardness Testers (~7 – 80 R)

Paper Schmidt App

Mobile App: Proceq Paper Schmidt App

App Display

Any compatible Apple® iOS device

Any supported Android™ device

App Workflow Features

Voice read-out of each impact (only on iOS®)

Logbook with geolocation, audio, image and

text annotations

Series statistics

Generate roll profiles

ID Barcode and QR code scanner

Set min/max values

Single and multiple roll series reporting: CSV

App Verification Features Software-assisted verification on an anvil

PC Software

Paperlink 2 software runs on Windows 7 or newer

PC Workflow features

Download and manage roll data

Instant view on measurement data span

Set up and change min/max limits

Display statistics

Insert measurement comments

Export data to CSV file

Export PNG images

Import of CSV exported from mobile App

Instrument

Measurement: Roll profile measurement (series of rebound

value)

Technology: Optical Rebound Velocity Quotient

Key Features

Impact angle independent

Displays the impacts on-screen as you work

Set min/max values

Connect to PC, mobile app and portable printer

Impact Energy: 0.735 Nm

Measurement range: ~7-80 R

Memory: Instrument memory > 20’000 impacts

Display: Analog & backlit digital (100 x 100 pixels, graphic)

Connectivity: Bluetooth® LE, USB for charging, updates and wired data transfer to PC

Standards compliance

TAPPI T834

TAPPI TIP 1004-01

Consisting of: Paper Schmidt PS8000 hammer, rechargeable AAA battery, Micro-USB cable, carrying strap, documentation, carrying bag.

Datasheet
