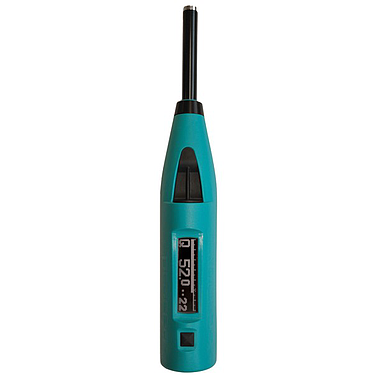

Proceq Silverchmidt STL Concrete Test Hammer (10-100 N/mm2, 0.735 Nm)

- Application:
+ Ideally suited for on-site tests of concrete
+ The concrete test hammer is suitable for testing a wide variety of concrete, mortar and rock, but also for testing metal castings
+ Handy for difficult to access or confined test areas (i.e. working overhead)
+ Assessment on young, soft concrete with mushroom plunger of the concrete test hammer

Impact energy: 0.735 Nm
Hammer mass: 135 g
Spring constant:0.26 N/mm
Spring extension: 75 mm (2.95”)
Housing dimensions: 55 x 55 x 255 mm
Weight: 570 g
Display: 17 x 71 pixels; graphic / alphanumeric
Power consumption: ~13 mA measuring, ~4 mA setup and review, ~0.02 mA idle
Battery life: >5000 impacts (before recharging)
Charger connection: USB type B (5V, 100 mA)
Concrete compressive strength: 10-100 N/mm2 (1450-14500 psi)
Operating temperaturea: 0 to 50 °C (32 to 122 °F)
Storage temperature: -10 to 70 °C (14 to 158 °F)
Order Information: SilverSchmidt STL consisting of: SilverSchmidt hammer, standard accessories (battery charger with USB cable, data carrier with software, carrying strap, grinding stone, chalk, documentation) and carrying bag
