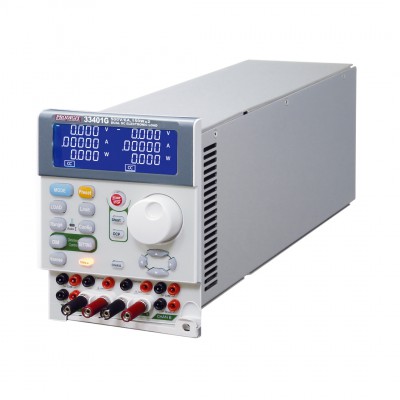

Prodigit 33401G LED DC Electronic Load Simulator (150Wx2, 1.5A/6A, 500V)

Power: 150Wx2

Current: 0~1.5A: 0~6A

Voltage: 0~500V

Min.Operation Voltage: 4V@6A

-CC mode

+Range: 0~1.5A; 0~6A

+Resolution: 0.025mA; 0.1mA

+Accuracy: 0.1%

-CR mode

+Range: CRL: 1Ω~3KΩ (300V); CRH: 2Ω~6KΩ (500V)

+Resolution: 16.666µS; 8.333µS

+Accuracy: ±0.2%

-CV mode

+Range: 60V/300V/500V

+Resolution: 0.001V/0.005V/0.01V

+Accuracy: ±0.05%

-CP mode

+Range: NA

+Resolution: NA

+Accuracy: NA

-LED mode

+Vo Voltage range: LEDL:60V/LEDM:300V/LEDH:500V

+Rd Resistance range: LEDL:1~200Ω@Vo-Vd=0~6V

LEDL:10~2KΩ@Vo-Vd=6~60V

LEDM:5~1KΩ@Vo-Vd=0~30V

LEDM:50~10KΩ@Vo-Vd=30~300V

LEDH:10~2KΩ@Vo-Vd=0~60V

LEDH:100~20KΩ@Vo-Vd=60~500V

+Resolution: 16 bits

+Accuracy: Vd: ±(0.05% of setting + 0.1% of range); Rd: ±(0.05% of setting + 0.1% of range)

- Option (necessary) : 3302F- single channel mainframe ; 3305F- two channels mainframe ; 3300F- four channels mainframe
