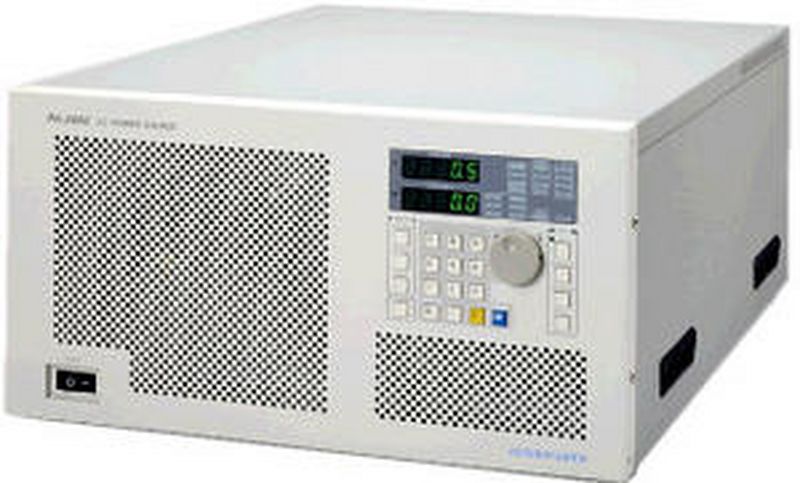

Prodigit 5200A Programmable AC Source 2KVA

Name: Prodigit 5200A Programmable AC Source 2KVA
Brand: PRODIGIT

Model5200A

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Key Features

2KVA, 1Ø .
AC Output Mode and DC Output Mode .
3 Range Current / Power Measurement (Power Meter Not Needed), High Measurement Accuracy .
Simulation of Interrupt and DIP / POP .
Max Output Current, When Load Power Factor is "0" .
Switch ON/OFF angle control (0∘~360∘) .
High Quality Waveform of 0.1% (Distortion Rate : Typical 0.1%), and can output ON/OFF synchronized signal .
Max Output Current, When Load Power Factor is "0" .
USB Interface (Standard), GPIB and Ethernet (Option) .
Arbitrary Waveform (Option) .
Variable Output Impedance (Option) .
Arbitrary Waveform (Opt) .
The 5200A programmable AC Source utilizes two technologies (Linear + PWM) both features of PWM and Linear types being combined provides Optimum Performance that has advantage of compact size, light weight and excellent output waveform .
The output waveform of 5200A is nice-looking sine wave, high Quality Waveform of 0.1% (Distortion Rate : Typical 0.1% ) and (50/60Hz, Linear load) .
The optional Variable Output Impedance provides IEC61000-3-2 test regulation .
Programmable Output impedance specification：
‧Variable Range of Output impedance .
‧Setting Range(L) 10µH~100µH/0.1mH~1mH .
‧Setting Resolution ±1%(TYP) .
‧Accuracy(R)(*1) ±5% of stg.+5% of f.s.
‧Accuracy(L)(*1) ±10% of stg.+10% of f.s.
