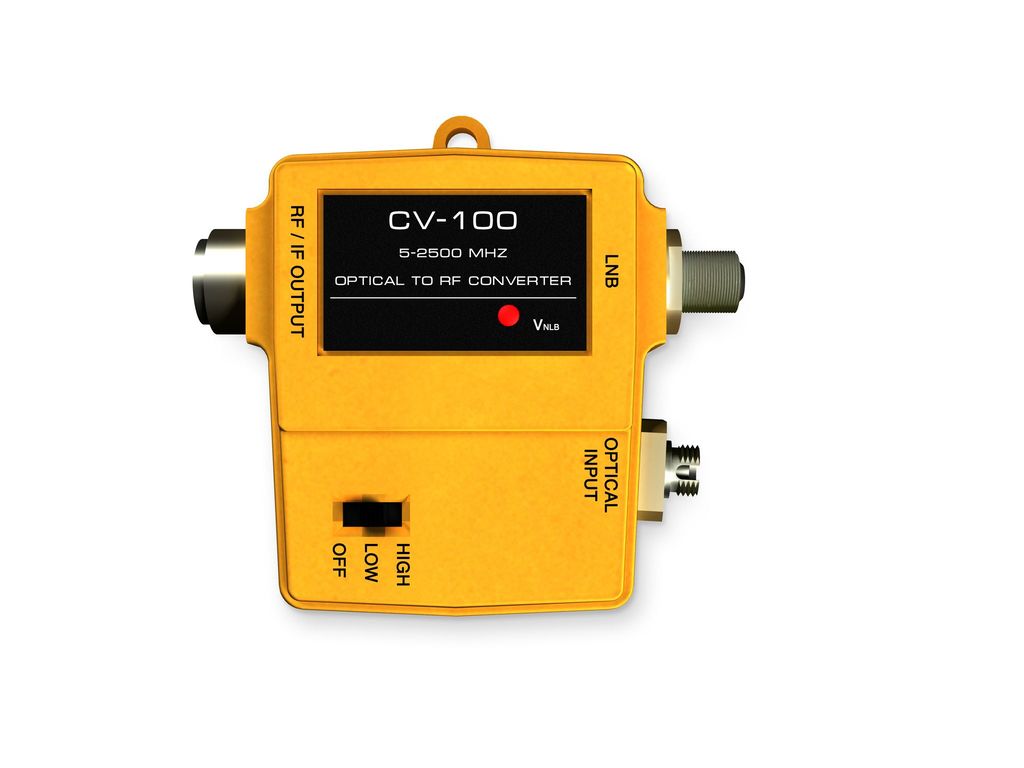

Promax CV-100 Optical to RF Converter (5-2500 MHz)

Optical Input:

Wavelength range: 1100 to 1600 nm

Input power range: From +7 dBm to –30 dBm

Optical Return Loss: >40 dB

Optical connector: FC-PC (standard, others on demand)

Fibre Core/Cladding: 9 /125 µm

RF Output:

Bandwidth: From 5 to 2500 MHz

Max. output signal: 120 dBµV

RF connector: BNC 50 Ω

CTB, CSO: ≤ 65 dBc

20 dB attenuator: Selectable (High/Low)

DC Output: By passed from RF output connector (12V / 500mA)

Max Voltage: 14 V (over-voltage and over-range protection)

DC connnector: F connector for optical LNB supply

Internal consumption: 80 mA
