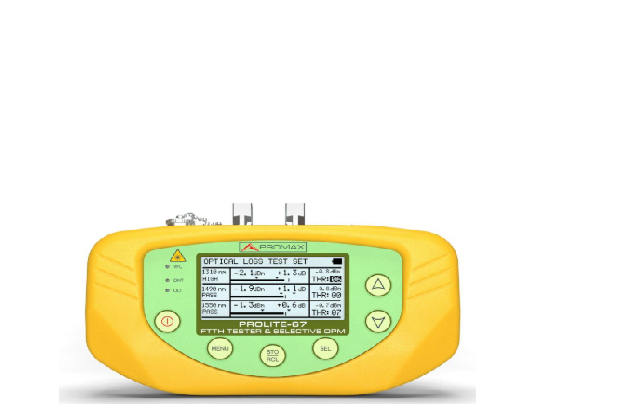

Promax PROLITE-67 Selective optical power meter for FTTx-xPON
Manufacturer: Promax Model: PROLITE-67 Origin: United Kingdom Guarantee: 12 Month - Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Manufacturer: Promax
Model:PROLITE-67
Origin: England
Warranty: 12 months
SPECIFICATIONS
Bandwidth
OLT/OPM input: 1310 nm
1490 nm
1550 nm
ONT (upstream channel) input: 1100 - 1700 nm
ONT/OPM-OLT insertion loss: < 1.2 dB
Polarization dependent loss:< 0.2 dB
ONT, OLT connectors: SC/APC
Internal Fibre optic: 9/125 µm
Dynamic Range
ONT/OPM input: -50 dBm at 20 dBm
OLT (Burst) input: -32 dBm at 20 dBm
Accuracy: ± 0.5 dB 1
Modulation: Automatic detection at 270 Hz / 1 kHz / 2 kHz / 3 kHz
VISUAL FAULT LOCATOR
LASER type: FP
Wavelenght: 635 nm
Optical Power: -2 dBm (monomode fibre / class 2)
Modulation: 1 Hz / 50%
Connector: Universal Receptacle 2.5 mm
USB INTERFACE: Type-B Mini USB female connector. For data transfering, threshold values editing
and firmware updating
ALIMENTATION
Battery: 7.4 V Li Ion battery
Low Battery Indicator: Graphic indicator on screen
Operating time: Approx. 10 h
Battery Charging: By fast internal charger
Voltage: 12 V DC
Consumption: 13 W
Mains Adapter: From 90 V to 250 V, 50-60 Hz (Included)
MECHANICAL FEATURES
Dimensions: W. 180 x H. 95 x D. 50 mm
Weight: 459 g. (battery and safety case included)
INCLUDED ACCESORIES: Mains Adapter 90 - 250 V AC, Feeder cable car,
Mains cord CEE-7, Data Transfer Cable USB to PC, Cable USB(A)M-MiniUSB (B) M,
CD-ROM PROLITE-67, User’s Manual
OPTIONAL ACCESSORIES: 1.25 - 2.5 mm VFL adapter, Transport suitcase
