Manufacturer: Promax

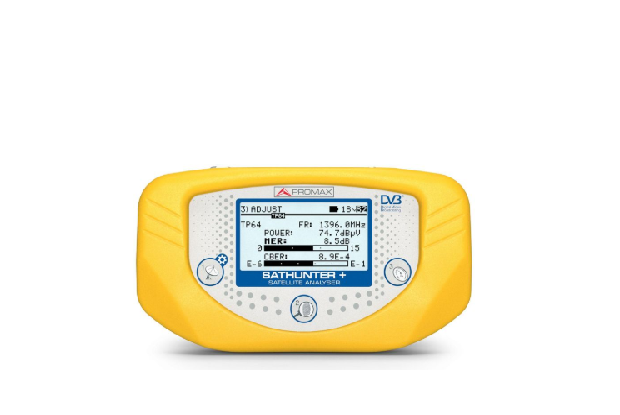

Model:SATHUNTER+
Origin: England
Warranty: 12 months
MECHANICAL FEATURES
Dimensions: 180 mm (W) x 95 mm (H) x 50 mm (D)
Weight: 480 g.
TUNING
Frequency range: 950 MHz to 2150 MHz
Measurement points: 50 maximum
RF INPUT
Impedance :75 Ω
Connector: Universal, including BNC, DIN and F interchangeable adapter
Level range: 30 dBµV to 110 dBµV
Maximum signal level: 120 dBµV
DVB-S SIGNAL PARAMETERS
Symbol rate: 2 to 45 Mbauds
Roll-off (α) factor of Nyquist filter: 0.35
Code Rate: 1/2, 2/3, 3/4, 5/6, 7/8
Spectral inversion Selectable: ON, OFF
DVB-S2 SIGNAL PARAMETERS
Symbol rate (QPSK): 2 to 45 Mbauds
Symbol rate (8PSK): 2 to 45 Mbauds
Roll-off (α) factor of Nyquist filter: 0.20, 0.25 and 0.35
Code Rate (QPSK): 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Code Rate (8PSK): 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
Spectral inversion Selectable: ON, OFF
DVB-S / S2 MEASURES Power: 40 to 100 dBµV
0 to 25 dB
CBER: 1E-6 to 1E-1
VBER (DVB-S only): 1E-8 to 1E-3
LBER (DVB-S2 only): 1E-8 to 1E-3
SIGNAL PARAMETERS
Spectral inversion: Automatic
Quality level for acceptance: Definable by user
Initial values: MER = 5 dB
Displayed information: Satellite’s Azimuth and orbital position if it is detected. Service name,
the 32 first services and network or bouquet, if it is detected.
Visual indication of DVB-S or DVB-S2 synchronized signal.
Configuration of measurement points: By serial connection to PC (cable and program included)
EXTERNAL UNITS POWER SUPPLY: Through the RF input connector
Output voltage: 13 V, 18 V ± 1 V
Maximum output current: 300 mA
22 kHz signal: Selectable
Voltage: 0.6 V ± 0.2 V
Frequency: 22 kHz ± 4 kHz
BACK-LIGHT DISPLAY: Automatic
POWER SUPPLY
Battery: 7.4 V 2.2 Ah Li-Ion battery
Low battery indication: Acoustic indication and a message on the display
Charger: Built-in. It disconnects the powering when the charging process ends
Autonomy: 80 min. typically, powering a universal LNB and identifying a signal continuously
Charging time: 100 min. approx.
Mains Adapter: 90 - 250 V/50-60 Hz (included), 12 V DC, 20 W
ACCESSORIES: Mains power adapter, Car lighter adapter, F to BNC/DIN/F adapters,
Mains cord, USB 2.0 connector cable, Rechargeable Li-Ion battery,
Carrying suitcase, Carrying belt, Case (optional)
