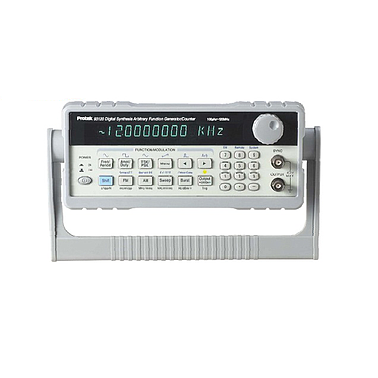

Protek 9380 Digital Synthesis Arbitrary Function Generator/Counter

Name: Protek 9380 Digital Synthesis Arbitrary Function Generator/Counter
Brand: PROTEK

ManufacturerPROTEK(View more products from this manufacturer)

Model9380

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Spec					9380
Waveform	Frequency Range	Main Waveform			100µHz - 80MHz
		Stored Waveform	100µHz~100kHz
	Resolution		1µHz
	Accuracy		5 0.000001
	Stability		1 0.000001
Frequency	Main Waveform		Sine, Square, TTL
	Level Resolution		12Bits
	Sampling Rate		200MS/s
	Sine Waveform Distortion Harmonic		-50dBc(Freq ≤ 5MHz), -45dBc(Freq ≤ 10MHz), -40dBc(Freq ≤ 20MHz), -35dBc(Freq ≤ 40MHz)
	Sine Waveform Distortion		0.1% (20MHz~100kHz)
	Square Waveform Rising/Falling Time		Less than 25ns	Less than 15ns
	Stored Waveform	Waveforms	27 Waveforms (Sine, Square, Triangle, Up-lamp, Down-lamp, Noise, Pulse, P-pulse, N-pulse, P-dc, N-dc, Stair, c-pulse, Commut-fu, Commut-hr, Sine-tra, Sine-ver, Sine-pm, Log, Exp, Round-har, sin%, Squ-root, Angent, Cardio, Quake, Combin)
		Waveform Length	4096Dots
		Amplitude Resolution	10Bits
		Duty Factor of Pulse Wave	0.1% ~ 99.9% (Less than 10kHz), 1% ~ 99% (10kHz ~ 100kHz)
Amplitude	Amplitude Range		2mV ~ 20Vp-p(High Impedance), 1mV ~ 10Vp-p(50Ω)
	Max. Resolution		2µVp-p(High Impedance), 1µVp-p(50Ω)
	Amplitude Accuracy (at 1kHz)		(1%+0.2mV)
	Amplitude Stability		5% / 3hours
	Flatness	Amplitude ≤ 2V	3% (Freq ≤ 5MHz), 10% (5MHz < Freq ≤ 40MHz)
		Amplitude > 2V	5% (Freq ≤ 5MHz), 10% (5MHz < Freq ≤ 20MHz), 20% (5MHz < Freq ≤ 20MHz)
	Output Impedance		50Ω
Offset	Offset Range		10V(High Impedance), 5V(50Ω)
	Resolution		2µV(High Impedance), 1µV(50Ω)
	Error		1%+10mV
AM	Carrier Waveform		Sine, Square
	Modulation Mode		INT, EXT
	Modulation Signal	Waveform	Sine, Square, Triangle, Up-Lamp, Down-Lamp
		Frequency	10µHz ~ 20kHz
	Relative Modulation Error		(5%+0.2)100µHz < Freq ≤ 10kHz, (10%+0.5)(10kHz < Freq ≤ 20kHz)
	Modulation Depth		1%~120%
	Amplitude of External Input Signal		3Vpp (+1.5V~-1.5V)
FM	Carrier Waveform		Sine, Square
	Modulation Mode		INT, EXT
	Modulation Signal	Waveform	Sine, Square, Triangle, Up-Lamp, Down-Lamp
		Frequency	100µHz~10kHz
	Frequency Offset		Max, 50% of Carrier Frequency for Internal FM; Max, 10% of Carrier Frequency of External FM; Input Signal Voltage 3Vp-p (+1.5V~-1.5V)
	FSK Modulation	Input Signal	Either Frequency 1 or Frequency 2
		Control Mode	INT, EXT (TTL Level, Low Level F1, High Level F2)
		Alternation Rate	0.1ms ~ 800s
PM	Waveform		Sine, Square
	PSK Modulation	PSK	Phase 1 (P1), Phase 2 (P2)
		Range	0.1° ~ 360.0°
		Resolution	0.1°
		Alternation Time Interval	0.1ms ~ 800s
		Control Mode	INT, EXT (TTL Level, Low Level P1, High Level P2)
Burst	Waveform		Sine, Square
	Burst Counting		1~10000 Period
	Alternation Time Interval		0.1ms ~ 800s
	Control Mode		INT, EXT
Sweep	Waveform		Sine, Square
	Time		1ms~800s (linear), 100ms~800s(log)
	Mode		Linear, Log
	External Trigger Signal Frequency		DC ~ 1kHz(linear), DC ~ 10kHz(log)
	Control Mode		INT, EXT
Output of Modulation Signal	Waveform		Sine, Square, Triangle, Up-Lamp, Down-Lamp
	Frequency		100µHz ~ 20kHz
	Amplitude		5Vpp 2%
	Output Impedance		620Ω
Storage	Storage Parameter		Single Frequency, Amplitude, Waveform, DC Offset Values and Function State
	Storage Capacity		10 Signal
Frequency Measurement
Frequency Range			1Hz ~ 100 MHz
Min. Input Voltage		ATT Open	50mV (Freq 10Hz ~ 50MHz), 100mV (Freq 1Hz ~ 100 MHz)
		ATT Close	0.5V (Freq 10Hz ~ 50MHz), 1V (Freq 1Hz ~ 100 MHz)
Max. Input Voltage			100Vpp (Freq ≤ 100kHz), 20Vpp (1Hz ~ 100 MHz)
Low Pass Filter			Cut off Frequency about 100kHz
		With Internal Attenuation	≤ -3dB
		With External Attenuation	≥ -3dB (Freq > 1MHz)
Gate Time			10ms ~ 10s
Operation Characteristics
Power			220V 10%, 50~60Hz, Max, 35W
Temperature/Humidity			0°C ~ 40°C, 35% ~ 80%
Dimension			255mm 370mm 100mm

Applications

Electronic Engineers
Production Lines
Education and Scientific Research

The Protek 9305, 9310, 9320, 9340, 9380 and 93120 is a precise test instrument that designed by Direct Digital Synthesis System and can output standard waveforms (sine, square, triangle, ramp & pulse) and Arbitrary Waveform. These Models are used to output function signals and AM, FM, FSK, PSK, Sweep and Burst, Frequency Sweep Signal.

Waveform Screenshots
Sine	Square	Triangle	Ramp

Pulse	Arbitrary	FM	AM

Sweep	Burst	FSK	PSK

Spec			9305	9310	9320	9340	9380	93120
Waveform	Frequency Range	Main Waveform	100µHz - 5MHz	100µHz - 10MHz	100µHz - 20MHz	100µHz - 40MHz	100µHz - 80MHz	100µHz - 120MHz
		Stored Waveform	100µHz~100kHz
	Resolution		1µHz
	Accuracy		5 0.000001
	Stability		1 0.000001
Frequency	Main Waveform		Sine, Square, TTL
	Level Resolution		12Bits
	Sampling Rate		200MS/s
	Sine Waveform Distortion Harmonic		-50dBc(Freq ≤ 5MHz), -45dBc(Freq ≤ 10MHz), -40dBc(Freq ≤ 20MHz), -35dBc(Freq ≤ 40MHz)
	Sine Waveform Distortion		0.1% (20MHz~100kHz)
	Square Waveform Rising/Falling Time		Less than 25ns		Less than 15ns
	Stored Waveform	Waveforms	27 Waveforms (Sine, Square, Triangle, Up-lamp, Down-lamp, Noise, Pulse, P-pulse, N-pulse, P-dc, N-dc, Stair, c-pulse, Commut-fu, Commut-hr, Sine-tra, Sine-ver, Sine-pm, Log, Exp, Round-har, sin%, Squ-root, Angent, Cardio, Quake, Combin)
		Waveform Length	4096Dots
		Amplitude Resolution	10Bits
		Duty Factor of Pulse Wave	0.1% ~ 99.9% (Less than 10kHz), 1% ~ 99% (10kHz ~ 100kHz)
Amplitude	Amplitude Range		2mV ~ 20Vp-p(High Impedance), 1mV ~ 10Vp-p(50Ω)
	Max. Resolution		2µVp-p(High Impedance), 1µVp-p(50Ω)
	Amplitude Accuracy (at 1kHz)		(1%+0.2mV)
	Amplitude Stability		5% / 3hours
	Flatness	Amplitude ≤ 2V	3% (Freq ≤ 5MHz), 10% (5MHz < Freq ≤ 40MHz)
		Amplitude > 2V	5% (Freq ≤ 5MHz), 10% (5MHz < Freq ≤ 20MHz), 20% (5MHz < Freq ≤ 20MHz)
	Output Impedance		50Ω
Offset	Offset Range		10V(High Impedance), 5V(50Ω)
	Resolution		2µV(High Impedance), 1µV(50Ω)
	Error		1%+10mV
AM	Carrier Waveform		Sine, Square
	Modulation Mode		INT, EXT
	Modulation Signal	Waveform	Sine, Square, Triangle, Up-Lamp, Down-Lamp
		Frequency	10µHz ~ 20kHz
	Relative Modulation Error		(5%+0.2)100µHz < Freq ≤ 10kHz, (10%+0.5)(10kHz < Freq ≤ 20kHz)
	Modulation Depth		1%~120%
	Amplitude of External Input Signal		3Vpp (+1.5V~-1.5V)
FM	Carrier Waveform		Sine, Square
	Modulation Mode		INT, EXT
	Modulation Signal	Waveform	Sine, Square, Triangle, Up-Lamp, Down-Lamp
		Frequency	100µHz~10kHz
	Frequency Offset		Max, 50% of Carrier Frequency for Internal FM; Max, 10% of Carrier Frequency of External FM; Input Signal Voltage 3Vp-p (+1.5V~-1.5V)
	FSK Modulation	Input Signal	Either Frequency 1 or Frequency 2
		Control Mode	INT, EXT (TTL Level, Low Level F1, High Level F2)
		Alternation Rate	0.1ms ~ 800s
PM	Waveform		Sine, Square
	PSK Modulation	PSK	Phase 1 (P1), Phase 2 (P2)
		Range	0.1° ~ 360.0°
		Resolution	0.1°
		Alternation Time Interval	0.1ms ~ 800s
		Control Mode	INT, EXT (TTL Level, Low Level P1, High Level P2)
Burst	Waveform		Sine, Square
	Burst Counting		1~10000 Period
	Alternation Time Interval		0.1ms ~ 800s
	Control Mode		INT, EXT
Sweep	Waveform		Sine, Square
	Time		1ms~800s (linear), 100ms~800s(log)
	Mode		Linear, Log
	External Trigger Signal Frequency		DC ~ 1kHz(linear), DC ~ 10kHz(log)
	Control Mode		INT, EXT
Output of Modulation Signal	Waveform		Sine, Square, Triangle, Up-Lamp, Down-Lamp
	Frequency		100µHz ~ 20kHz
	Amplitude		5Vpp 2%
	Output Impedance		620Ω
Storage	Storage Parameter		Single Frequency, Amplitude, Waveform, DC Offset Values and Function State
	Storage Capacity		10 Signal
Frequency Measurement
Frequency Range			1Hz ~ 100 MHz
Min. Input Voltage		ATT Open	50mV (Freq 10Hz ~ 50MHz), 100mV (Freq 1Hz ~ 100 MHz)
		ATT Close	0.5V (Freq 10Hz ~ 50MHz), 1V (Freq 1Hz ~ 100 MHz)
Max. Input Voltage			100Vpp (Freq ≤ 100kHz), 20Vpp (1Hz ~ 100 MHz)
Low Pass Filter			Cut off Frequency about 100kHz
		With Internal Attenuation	≤ -3dB
		With External Attenuation	≥ -3dB (Freq > 1MHz)
Gate Time			10ms ~ 10s
Operation Characteristics
Power			220V 10%, 50~60Hz, Max, 35W
Temperature/Humidity			0°C ~ 40°C, 35% ~ 80%
Dimension			255mm 370mm 100mm
