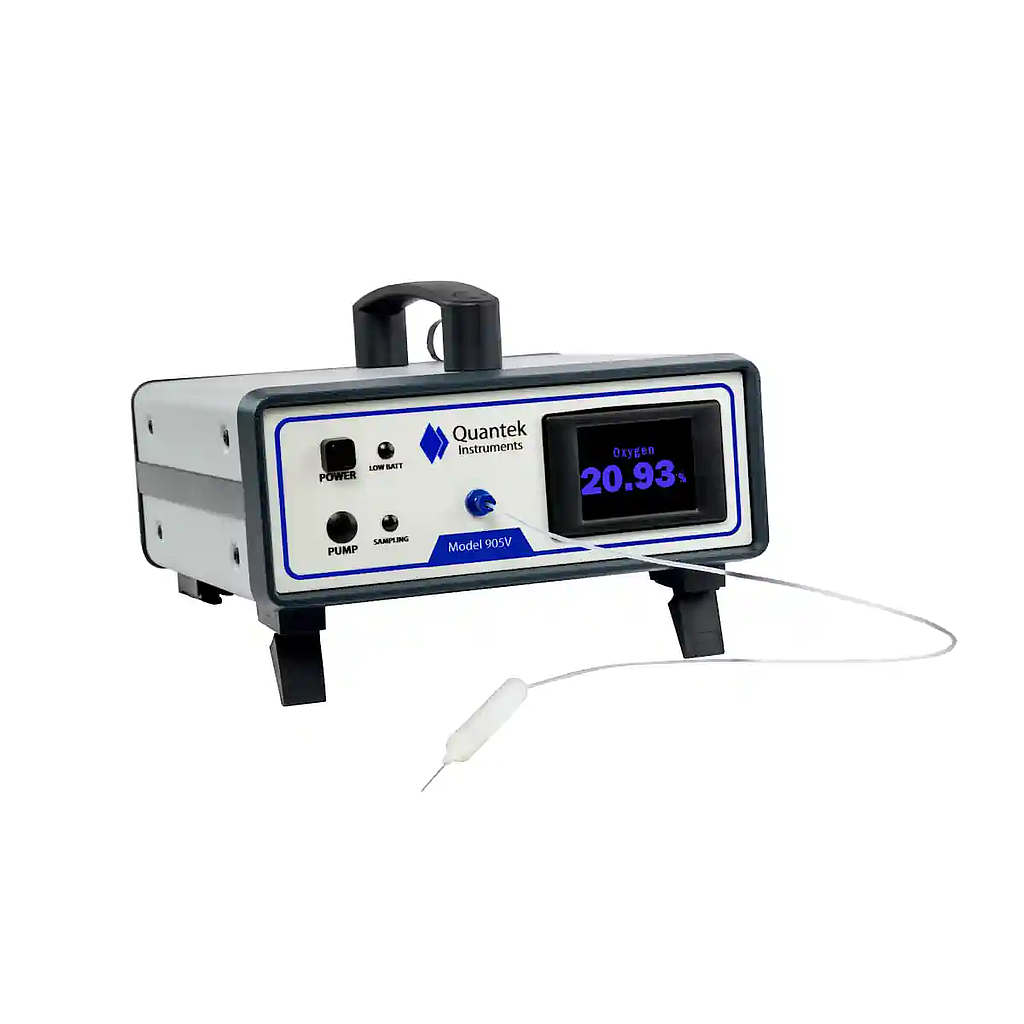

QUANTEK INSTRUMENTS 905V Pharmaceutical Vial O2 Analyzer (0.00 ~ 100%)

Expected Lifetime (oxygen): 4-5 years

Oxygen Range: 0.0 to 100%

Oxygen Sensitivity: 0.0001

O2 Resolution: 0.0001

Analog Output: Not Available

Resolution: 0.0001

Accuracy: : +/- 1% of reading; +/- 0.1% absolute below 10.0%

Drift: less than 0.4% per year

Oxygen Sensor Type: Proprietary electrochemical cell, expected lifetime 4-5 years

Response Time: 15 seconds to T95

O2 Sensor Lifetime: 4-5 Years

O2 Sensor Body: ABS Resin

Sample Connection: Sample Probe

Sample Method: Water displacement method; alternately, product can be squeezed to introduce sample to analyzer

Sample Pump: Not Available

Pump Timing: Not Available

Minimum Sample Required: 0.5cc

Sampling Assembly: Probe with ultra fine zero volume needle, low volume PTFE tubing

Oxygen Calibration Controls: Fine SPAN, Coarse SPAN, Zero adjustment

Instrument Calibration: Calibrates with room air; coarse SPAN adjustment on back; fine span adjustment on side; ZERO adjustment on side

Exhaust port: Vents to air

Power Supply: 100-240V (50-60Hz) Charger included, with US or international interchangeable plug adapter (upon request)

Backup Power: Optional 12V internal battery pack

Battery Operation: Optional

Input Voltage: 100-240V, 50-60Hz

Battery Life: 8-12 hours before recharging

Measures: O2, CO2: CO2

Form Factor: Benchtop

Size: 9.8in x 4in x 10in. (249 x 102 x 254 mm)

Weight: 8 lb. (3.6 Kg)

Standards: CE, RoHS

Included Consumables: Low volume sample probe, three zero volume puncture needles, tubing & tee fitting, two plastic 1cc and 5cc syringes, 115/240Vac to 12Vdc power adapter

Included Documentation: Owners manual (includes operating instructions with detailed calibration instructions, calibration certficate, precautions), NIST calibration certificate

Origin of Goods: Our products are manufactured in the U.S.A.

Products by Gas: Oxygen

Products by Applications: Pharmacetical

Including

Fine .01% resolution standard

Includes sampling probe with ultra • low volume tubing

Includes fine needles

Easy to use side span adjustment

Optional Items

Optional internal battery. The battery pack is a 10 AA NiMH with high temperature safety shutoff, low voltage cutoff, and 16 hour typical runtime.

Optional internal pump (this allows analyzer to be used with pump actuation for applications with larger amounts of headspace)

CONTAINER TEST KIT – Add the container test kit for difficult applications where using the pump is not practical. Our patent pending sampling kit can be used to collect samples from almost any imaginable container. Simply puncture the package under water, collect the sample in our inverted funnel, and then sample via the rubber stopper.
