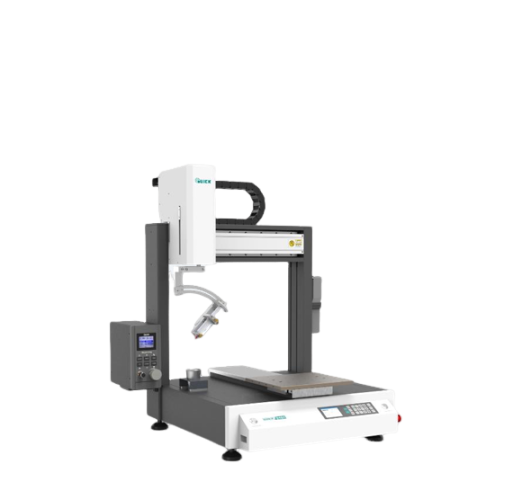

Supply Voltage: 220VAC
Number of Axis: 4-axis
Operation Range: X/Y/Z/R axis: 300/300/100mm/±180°
Speed Range: X/Y axis: 0.1～800 （mm/sec)
Z axis: 0.1～300 （mm/sec）
Repeat Positioning Accuracy: X/Y/Z axis: ±0.01 mm
Load Capacity: Platform:8 kg; Head（ZR axis) :3 Kg （stepper motor + precision ball screw)
Speed Control: 3-dimensional linear, circular interpolation, automatic lifting speed adjustment with speed look-ahead
Capacity for Teaching Files: Up to 255, and 60000 for all points
Capacity for Processing Files: Up to 255
Operating Conditions: Temperature: 0～40℃; Humidity: 20％～90％（no condensation）
Dimensions W×D×H: 640*665*840mm
Weight: 37 kg
Features:
QUICK self-developed compact series E special motion platform, with high speed and high precision; applying noise suppression control for low noise level; Y-axis closed-loop control, with no pulse missing and high load capacity
Equipped with QUICK 982D precision dispensing controller, using imported high flow precision pressure reducing valve for higher pressure accuracy and faster dispensing response; built-in air storage tank to balance the instant pressure fluctuation at opening of valve for stable dispensing accuracy
With functions of needle cleaning and starting point calibration
R-axis±180°for flexible and convenient application of process
Pressure warning and optional lack of adhesive warning
Inlet air pressure and dispensing air pressure are adjustable, can quickly supply dispensing pressure, fast response, high dispensing precision
With hand slide valve, the air source can be quickly cut off
Can communicate with PC via RS-485 to monitor and set values of temperature and feeding in real time and more
Data can be read by PC and uploaded to MES system in real time
Displaying processing files (up to 255), equipment status, number of dispensing in real-time, the processing program can be switched by pressing buttons
