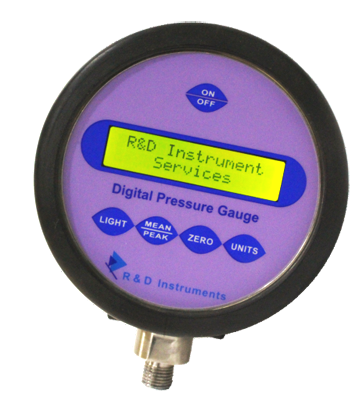

R&D Instruments DPG-20 Digital Pressure Gauge (0~20 bar; 0.1%)

Over Pressure Alarm :
20% of Full Scale for DPG-2, 10, 20 & 40
5% of Full Scale for DPG-70, 200, 400 & 700
Pressure Media : Compatible to 316 Stainless Steel
Current Terminal Input
Protection: Fuse: 100mA / 250V
Display : Alpha Numeric Display
Backlight : LED Backlight
Power Supply : 4 x 1.5 V Alkaline Battery
Low Battery Indicator : Yes
Auto Power Off : 30 minutes
Battery Backup : 200 hours
Pressure Connection : 1/4" BSP Male
Operating Temperature : 10 to 50°C
Instrument Casing: SS304
Protective Cover : Rubber Boot
Instrument Dimensions: 4" or 100 mm Dial
Instrument Weight : 500 grams
Specification:
Range: -1 to 20 bar
Resolution: 0.001 bar
Accuracy: ±0.1% of F.S.
Selectable Pressure Units: bar, psi, Kg/cm2, KPa, MPa, atm, mH2O,
inHg, inH2O, ftH2O, mmHg, CmH2O, mbar

Standard Delivery
- Instrument with batteries
- Carrying Case
- User Manual
- Traceable Calibration Certificate

Optional
- Quick Couplers
- Accredited (NABL) Calibration Certificate as per ISO/IEC 17025: 40USD
