Projected image: Erect
X-axis Travel (mm): 75
Y-axis Travel (mm): 50
Metal table size (mm): 260×152
Glass table size (mm): 125×100
Resolution (μm): 0.5
Indication error (mm): E1XY=(2.5+L/100)
Z-axis Travel (mm): 90 (focusing)
Weight (kg): 120
Dimension (mm): 770×550×1100
Projection screen:
Size (mm): Ф 312
Rotary range: 0~360°
Resolution: 1' or 0.01°
Lens:
- Magnification: 10× (Optional)
Field of view (mm): Ф30
Working distance (mm): 77.7
Max. measuring Height (mm): 80
- Magnification: 20× (Optional)
Field of view (mm): Ф15
Working distance (mm): 44.3
Max. measuring Height (mm): 80
- Magnification: 50× (Optional)
Field of view (mm): Ф6
Working distance (mm): 38.4
Max. measuring Height (mm): 80
- Magnification: 100× (Optional)
Field of view (mm): Ф3
Working distance (mm): 25.3
Max. measuring Height (mm): 80
Power supply: AC 100-240V 50/60Hz. Total power: 400W
Product brief:

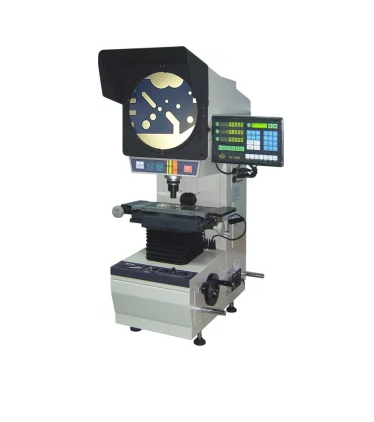

CPJ-3000/3000Z series digital profile projector is an ergonomic and reliable measuring instrument with competitive price. This instrument, which integrates optics, machinery and electronics, is able to sufficiently carry out direct measurement and comparative measurement for measured workpiece, such as stamping parts, gear, thread, and milling cutter, etc. It is widely used in the fields of machine manufacturing, electronics, mold, meter, etc.
