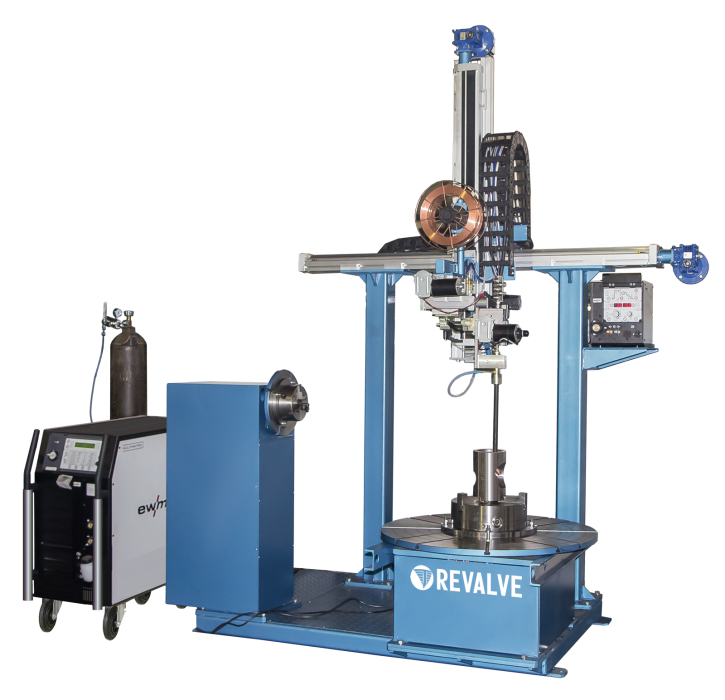

Horizontal travel of welding head: 1400(55)mm
Travel of a welding head along “zenith”: 100(4)mm
Vertical travel of a welding head: 1000(39)mm
Rotator load capacity: 300kg
Rotator faceplate rotation speed: 0,2÷5 rpm
Electrode-wire diameter: 1,0; 1,2; 1,6(0,039; 0,047; 0,063) mm
Rated welding current, at 100% duty cycle: 420A
Welding current adjustment range: 5÷450A
Range of welding voltage: 15÷31 V
Arc protection method: gas
Maximum power consumption: 45 kW
Power supply: 400/50 V/Hz
Overall dimensions, (LxWxH):
- machine: 2295х1508х2845 (90x59x112) mm
- power source: 1100х455х1000 (43x18x39) mm
Weight (machine/power source): 1220/129kg
