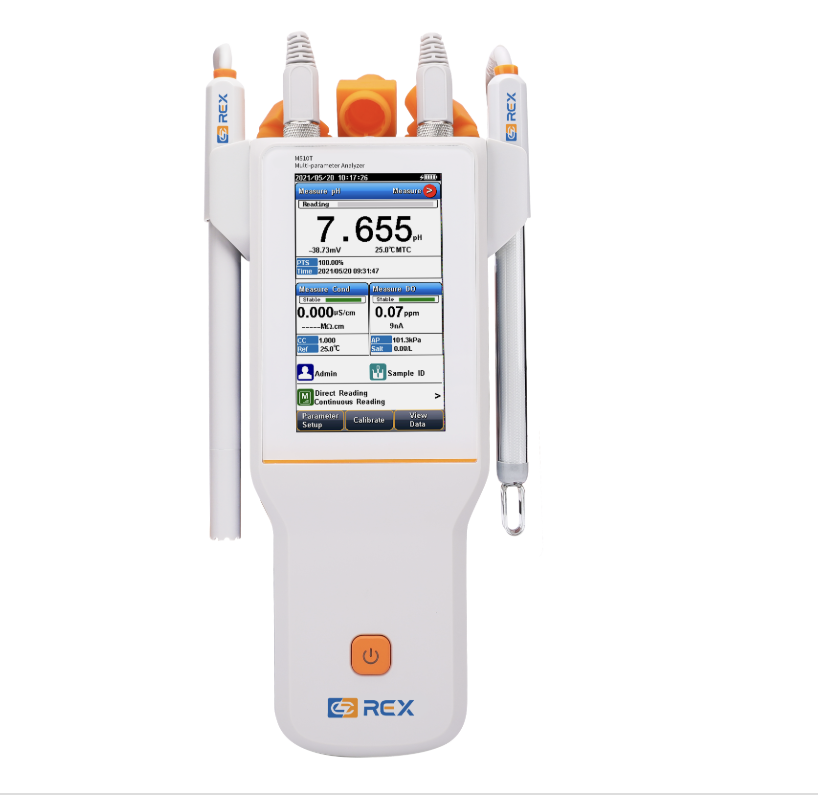

REX M510T(Optical DO) Multi-parameter Analyzer (20.000 pH, 2000.00 mV, 20.000) pX, 9.999e+9, 0.000 μS/cm ~ 3000 mS/cm)

Model: M510T

Parameters: pH/EC/ISE/DO/Temp. (mV/ORP/pX/Resistivity/TDS/Sal./DO Saturation)

pH Measurement

Range: (-2.000~20.000) pH

Resolution: 0.1 pH, 0.01 pH, 0.001 pH

Accuracy: ±0.002 pH

Calibration Points: Up to 8

Standard Customization: Yes

Calibration Reminder: Yes

Standard Recognition: USA, NIST, MERK, JIS, GB, DIN, GOST buffers

Slope Limit: Yes

mV/ORP

Range: (-2000.00~2000.00) mV

Resolution: 1 mV, 0.1 mV, 0.01 mV

Accuracy: ±0.1 mV or ±0.03%

EH ORP Mode: Yes

ORP Calibration Points: 1 custom point (relative mV)

pX

Range: (-2.000~20.000) pX

Resolution: 0.1 pX, 0.01 pX, 0.001 pX

Accuracy: ±0.002 pX

Calibration Points: Up to 8

ISE (Ion Selective Electrode)

Range: 1.000e-9 ~ 9.999e+9

Units: mol/L, mmol/L, g/L, mg/L, μg/L, ppm, ppb

Resolution: Up to 4 significant digits

Accuracy: ±0.3%

Calibration Points: Up to 8

Conductivity

Range: 0.000 μS/cm ~ 3000 mS/cm

Resolution: 0.001 μS/cm minimum, changed with range

Accuracy: ±0.5% FS

Reference Temperature: 5 ºC, 10 ºC, 15 ºC, 18 ºC, 20 ºC, 25 ºC

Calibration Points: Up to 5

Calibration Reminder: Yes

Standard Recognition: 10 μS/cm, 84 μS/cm, 500 μS/cm, 1413 μS/cm, 12.88 mS/cm; 146.5 μS/cm, 1408 μS/cm, 12.85 mS/cm, 111.3 mS/cm

Resistivity

Range: 5.00 Ω·cm ~ 100.0 MΩ·cm

Resolution: 0.01 Ω·cm minimum, changed with range

Accuracy: ±0.5% FS

TDS

Range: 0.000 ppm ~ 1000 ppt

Resolution: 0.001 ppm minimum, changed with range

Accuracy: ±0.5% FS

Salinity

Range: (0.0~80.0) ppt

Resolution: 0.1 ppt

Accuracy: ±1 ppt

Dissolved Oxygen (Optional fluorescent DO electrode)

Sensor Type: DO-968-HC Optical DO electrode

Range: (0.00~20.00) ppm

Resolution: 0.01 ppm

Repeatability: 0.15 ppm

Accuracy at 0% DO: ≤0.1 ppm

Measurement Accuracy: ±0.30 ppm

Response time: ≤45s (90% response at 20 °C)

Salinity Compensation Accuracy: ±2%

Calibration Reminder: Yes

Calibration Points: Air-saturated water or zero point

Barometric Compensation: Yes

Manual Salinity Factor Correction: Yes

Saturation (Optional fluorescent DO electrode)

Range: (0.0~200.0)%

Resolution: 0.1%

Measurement Accuracy: ±10.0%

Dissolved Oxygen Concentration (Polarographic)

Sensor Type: DO-958-Q polarographic DO electrode

Range: (0.00~99.99) ppm

Resolution: 0.01 ppm

Accuracy:

±0.10 ppm, (0.00~50.00) ppm

±0.50 ppm, (50.0~99.99) ppm

Calibration Reminder: Yes

Calibration Points: Air-saturated water or zero point

Barometric Compensation: Yes

Manual Salinity Factor Correction: Yes

Saturation (Polarographic)

Range: (0.0~600.0)%

Resolution: 0.10%

Accuracy: ±2.0%

Temperature

Range: (-10.0~135.0) ºC, (14.0~275.0) ºF

Unit: ºC, ºF

Resolution: 0.1 ºC, 0.1 ºF

Accuracy: ±0.1 ºC

Measurement

Reading Mode: Auto Read (Fast, Medium, Slow), Timed, Continuous

Reading Prompts: Reading, Stable, Locked

Temp. Compensation: ATC, MTC

Data management

Data Storage: 1000 Groups

GLP Features: Yes

Inputs

pH Electrode: BNC (Q9)

DO with Temp. Probe: 4-pin aviation connector

Conductivity with Temp. Probe: 5-pin aviation connector

Outputs

USB: USB 2.0 flash drive, PC, Bluetooth Printer

Display options

Backlight: Yes

Auto Shutdown: 300, 600, 1200, 1800, 3600 sec., off

IP Rating: IP67

Date and Time: Yes

General

Power: Rechargeable Lithium battery, AC Adapter (Input: 100-240V AC; Output: 5V DC, 2A)

Dimensions: 90×255×40 mm

Net Weight: 500 g
