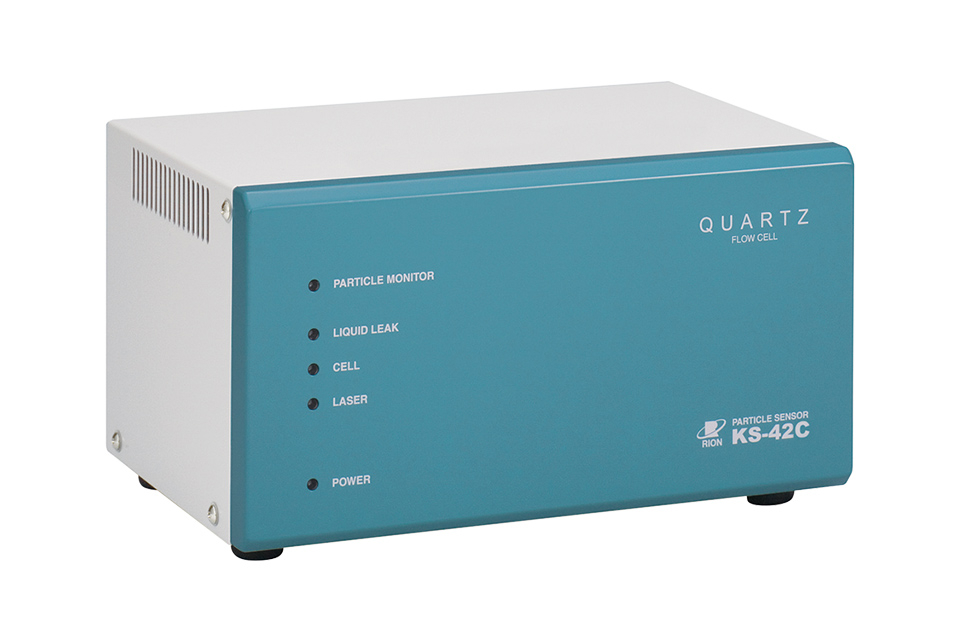

RION KS-42C Particle Sensor (10 mL/min)

Optical system: Light-scattering method

Light source: Laser diode (wavelength: 780 nm, rated output 5 mW)

Materials of parts exposed to sample fluid: Synthetic quartz, PFA, PTFE

Measurement size range: 7 channels (Factory default): ≥0.5 µm, ≥1 µm, ≥2 µm, ≥3 µm, ≥5 µm, ≥10 µm, ≥20 µm

Setting range: 0.5 µm to 20 µm

Flow rate: 10 mL/min

Maximum particle number concentration: 1,200 particles/mL (coincidence loss 5%)

Power requirements: DC12 V (Supplied by KE-40B1)

Dimensions: Approx. 125 (H) × 240 (W) × 151 (D) mm

Weight: Approx. 3 kg
