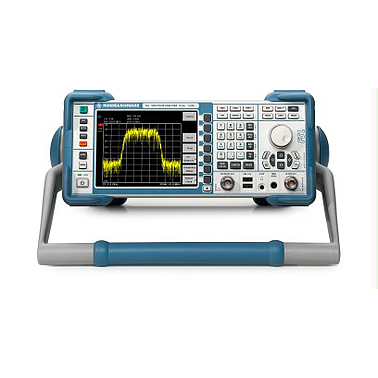

Manufacturer: Rohde&Schwarz
Model : FSL6 (1300.2502.06)
Warranty : 12 months
Frequency range: 9 kHz to 6 GHz
Frequency accuracy: 1 × 10^-6
Giải tần span : 0Hz, 10hz ~ 3Ghz
Resolution bandwidth:
+ Standard: 300Hz ~ 10Mhz
+ 10Hz ~ 10Mhz - Optional
Signal analysis bandwidth: 28 MHz
Phase noise: –98 dBc (1 Hz), typ. –105 dBc (1 Hz), f = 500 MHz
DANL: –162 dBm (1 Hz),f = 500 MHz, typical, preamplifier on
TOI: +18dBm
Sweep time:
+ 1us ~ 5us @ span =0hz.
+ 2.5 ms to 16000 s @ span 3.2Khz ~ 1.5Ghz
Measurement Signal level: DANL ~ +20dBm
Input Signal level: 50V/30dBm
Input impedance: 50 Ω
TG Generator: (Optional)
+ Frequency range: 1Mhz ~ 6Ghz
+ Output power setting range : -50dBm ~ 0dBm in 1dB Steps
Communication: LAN, USB & GPIB (optional)
Input voltage: 100 V to 240 V AC, 50Hz ~ 400Hz
Dimension: 408.8x158.1x465.3mm, 7kg.
Accessories: Power cable, manual
