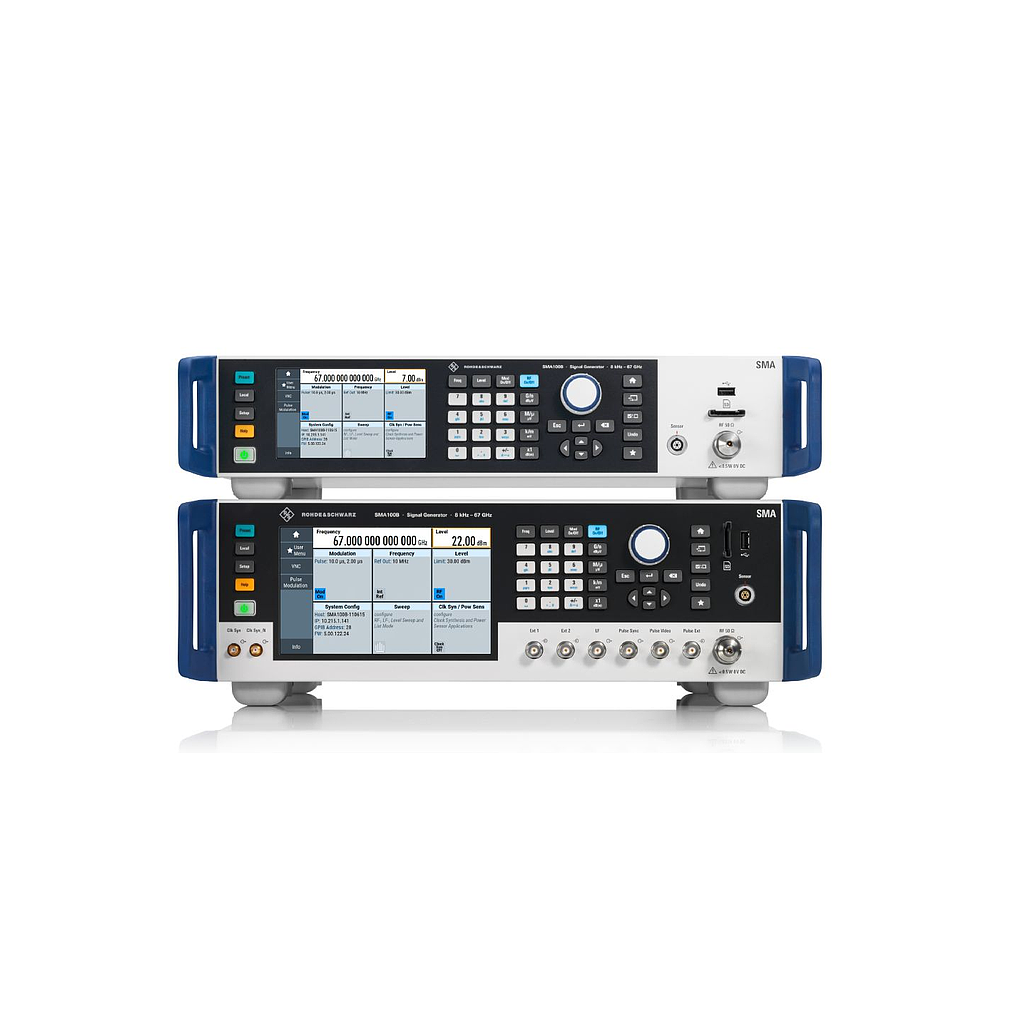

Rohde & Schwarz SMA100B RF And Microwave Signal Generator

Frequency range: 8 kHz - 3 GHz/6 GHz/12.75 GHz/20 GHz/31.8 GHz/40 GHz/50 GHz/67 GHz

Aging rate: ≤ 3 x 10^-8/year

Frequency resolution: 0.001 Hz

Output amplitude range: -127 dBm ~ +30 dBm

Amplitude accuracy: < 0.5 dB

Reflected power protection level: 50 V; 0.5 W

VSWR: < 1.6

Sweep type: Frequency, Level, Frequency + Level

Harmonic distortion: < -30 dBc

Non-harmonic distortion: < -85 dBc

Wideband noise: < -150 dBc (carrier offset: 10 MHz)

Single sideband phase noise: -140 dBc/Hz (typ.) (@f = 1 GHz; offset: 20 kHz)

Modulation types: AM, FM, PM, Pulse

Baseband frequency: 0.1 Hz to 1 MHz

Signal bandwidth (RF): N/A

Signal length: N/A

Reference signal input: BNC female/10 MHz, 1 MHz-100 MHz/0 dBm - 20 dBm

Reference signal output: BNC female/10 MHz, 100 MHz/7 dBm-14 dBm

Interfaces: USB; LAN; GPIB

Display: 7"

Power supply: 100 V ~ 240 V AC

Operating temperature: 0 °C ~ +55 °C

Integrated features: Pulse train generation; Chirp pulse generation.
