Measuring Speed: 1–2 minutes for single-phase winding;
Measuring Dynamic Range: -100dB～20dB;
Output Voltage: Vpp-25V, Automatic Adjustable;
Output Impedance: 50Ω;
Input Impedance: 1MΩ (the response channel is built with 50Ω matching resistance);
Frequency Sweep Scope: 10Hz–2MHz;
Frequency Accuracy: 0.00%;
Frequency Sweep Manner: linear or logarithmic, frequency sweep interval and number of sweeps adjustable;
Curve Display: Mag-freq. curve;
Power Supply: AC100–240V 50/60Hz;
Net Weight: 3.6kg

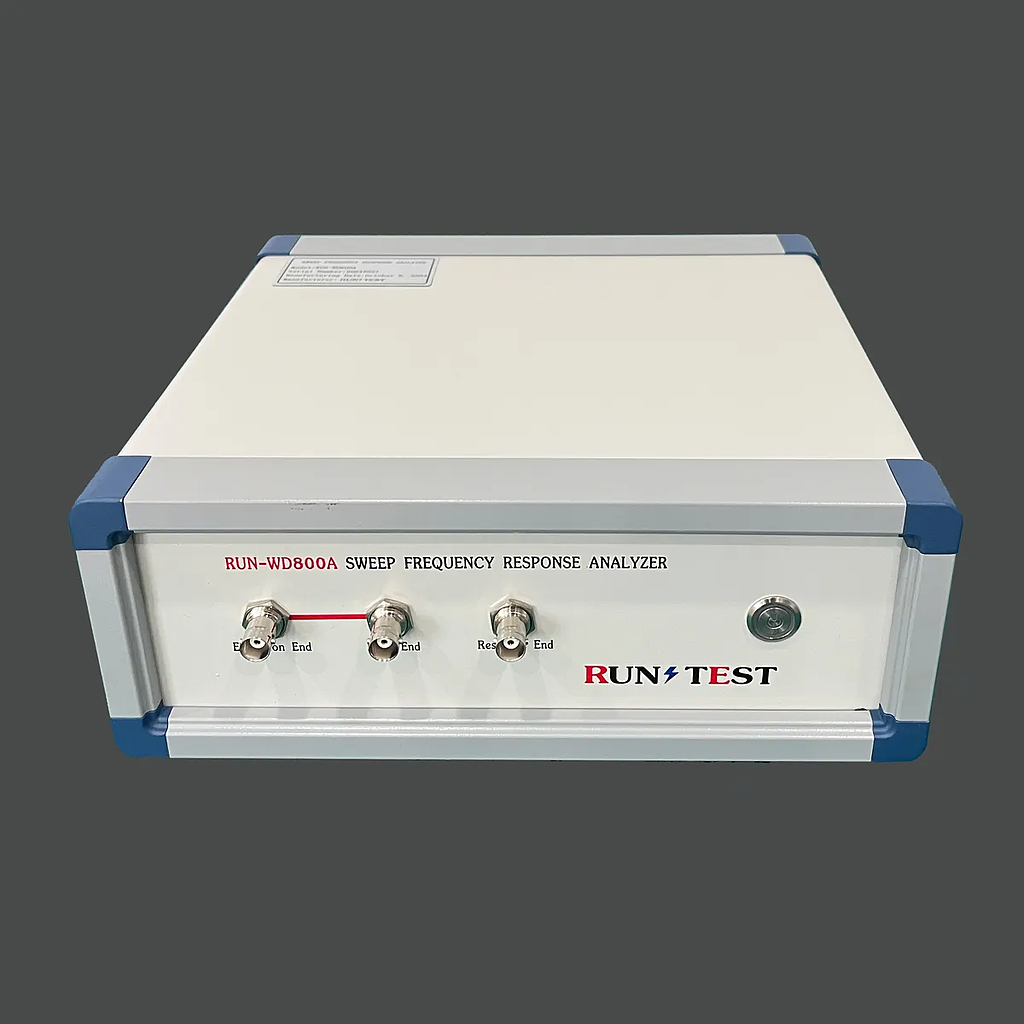

China Professional Manufacturer Sfra Analyzer Transformer Sweep Frequency Response Test Equipment (Sfra Tester)
The power transformer is inevitably vulnerable to impulse of various fault short-circuit current or physical collision in the process of operation and transportation and the transformer windings may lose stability under the powerful electro-dynamic force exerted by such short-circuit current, which could result in permanent deformations such as local distortion, swell or dislocation and will severely affect safe operation of the transformer.
The Technical Characteristics of Sfra Tester is as below
1. Characteristics of transformer windings are measured with frequency sweep method. Deformations of windings such as distortion, swell or displacement of 6kV and above transformer are measured by detecting amplitude-frequency response characteristics of each winding, not requiring lifting of transformer enclosure or disintegration.
2. Quick measuring, measuring of a single winding is within 2 minutes.
3. High frequency accuracy, higher than 0.001%.
4. Digital frequency synthesis, with higher frequency stability.
5. 5000V voltage isolation fully protects safety of the testing computer.
6. Able to load 9 curves at the same time and automatically calculate parameters of each curve and diagnose winding deformations to provide the reference diagnosis conclusion.
7. Analysis software has powerful functions and software and hardware indicators satisfy national standard DL/T911-2016/IEC60076-18.
8. Software management is humanized with high degree of intelligence. You only need to click one key to complete all measurements after setting of parameters.
9. The software interface is concise and vivid, with clear menus of analysis, save, report export, print, etc.
