AC Withstand Voltage Test
Output voltage: Range: 0–5000V, 0–12mA, resolution 10V
Accuracy: ±(2% set value + 5V)
Output frequency: 50Hz/60Hz selectable
Output waveform: Sine wave, distortion degree <2%
Upper limit setting: Range: 0.10–12.00mA, resolution 0.01mA, Accuracy: ±(2% set value + 2 words)
Lower limit setting: Range: 0.00–12.00mA, resolution 0.01mA, Accuracy: ±(2% set value + 2 words)
Arc detection: Level 1–9
DC Withstand Voltage Test
Output voltage: Range: 0–6000V, resolution: 10V, accuracy: ±(2% set value + 5V)
Output ripple: <5% (6kV/5mA) tested under linear load
Upper limit setting: Range: 0.02–5.00mA, resolution: 0.01mA, Accuracy: ±(2% set value + 2 words)
Lower limit setting: Range: 0.00–5.00mA, resolution: 0.01mA, Accuracy: ±(2% set value + 2 words)
Automatic discharge: 200ms
Control Interface
Input: test (TEST), reset (RESET)
Output: test passed (PASS), test failed (FAIL)
Testing in progress: TEST-IN-PROCESS
Slow Rise Setting: Range: 0.1–999.9 seconds
Testing Time: Range: 0.5–999.9 seconds (0 = continuous test)
Test Result Output Method: Buzzer, LCD display reading, control interface status output
Memory Group: 5 groups of test conditions are memorized, each group has 3 test steps to choose
Monitor: 16×2 LCD display with backlight
Insulation Resistance Test
Output voltage: Range: DC100–1000V, resolution 10V, accuracy: ±(2% set value + 5V)
Resistance range: Range: DC100–1000V, resolution 10V,
Accuracy: ±(3% set value + 2 words) for voltage ≥500V,
±(7% set value + 2 words) for voltage <500V
Upper limit setting: Same resistance range, spacing 1MΩ
Lower limit setting: Same resistance range, spacing 1MΩ

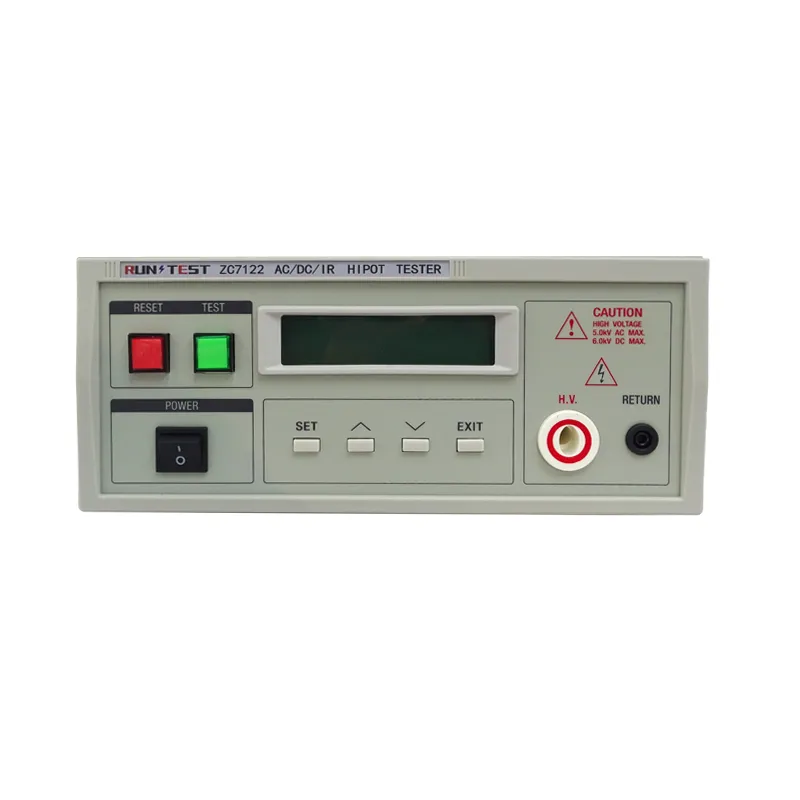

Features about this AC DC Withstanding Voltage Hipot Tester
1. 16×2 large character LCD display
2. Linear, low distortion sine wave output
3. 5 groups of program setting and memory function
4. Voltage ramp setting function
5. Unique arc detection function, defect identification is more accurate
6. AC and DC withstand voltage/insulation test function
