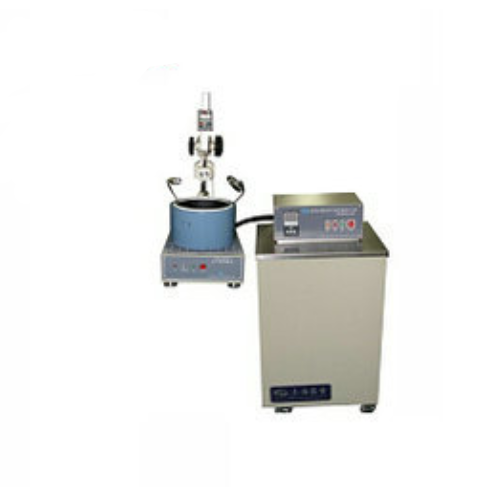

Samyon 2801F Low-Temperature Penetrometer (1200W)

1. Circulatory water bath

(1)Power supply: AC220V±10%， 50Hz

(2)Bath volume: 3.5L

(3)Temperature range: (5.0~60.0)℃

(4)Temperature accuracy: ±0.1℃

(5)Circulatory water quantity: 3L/min

(6)Pump lift: 2m

(7)Maximum power consumption: 1200W

(8)Net weight: 22kg

(8)Dimension: 455mm×285mm×420mm

2. Penetrometer

(1)Timing controller: 5s or 60s can be selected. Bias within±0.1s

(2)Needle holder: High accuracy digital display. Easy to use and observe. It can be moved to any position.

(3)Resolution: 0.1 penetration

(4)Penetration accuracy: ±1 penetration

(5)Measurement range:( 0-600 ) penetration

(6)The length of standard needle: 50mm

(7)The weight of standard needle: 2.5g±0.05g

(8)Sample container: it meets the standard T 0604-2011

(9) Counterweight: 50g

(10)Thermometer: (0~50)℃, scale: 0.1℃

(11)Level adjustment device: To ensure that the working face is in a horizontal state.

(12)Dimension: 280mm×370mm×840mm
