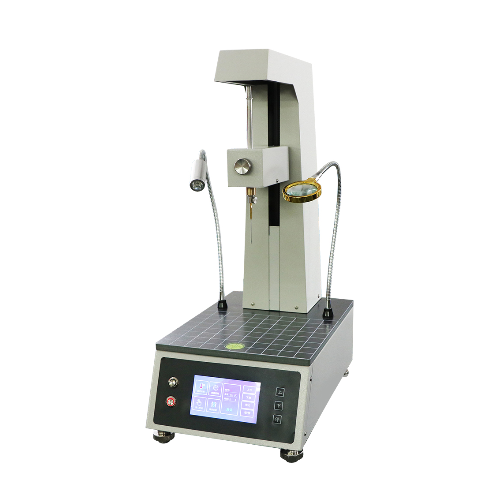

Samyon 2801H Automatic Penetrometer (200W)

I.Main technical specifications

1. Measurement accuracy of the instrument can reach to 0.6 penetrations.

2. New type penetrometer detection unit, and the test repeatability is stable.

3. It adopts high resolution capacitance touch screen, the information can be clearly displayed.

4. Special "Computer Drawing Software + Data Accurate Reading Technology", it can automatically draw and print the nomogram of asphalt penetration relationship.

5. It adopts new type lifting device.

II.Main technical specifications

1.Power supply: AC（220±10％）V, 50Hz;

2.Power consumption: 200W;

3.Measurement range: 0 penetration～600 penetrations;

4.Resolution: 0.1 penetration;

5.Timing range: 0s～60 s, and the error is less than ±0.1 s;

6.Data saved: 50 groups;

7.Standard needle: 50mm,2.5±0.05 g;

8.Sample container: Φ55×H35

9.Standard weight: 50g

10.Lifting device: automatic lifting;

11.Dimension: 260mm×400mm×600mm;(L*W*H)

12. Net weight: 15kg.
