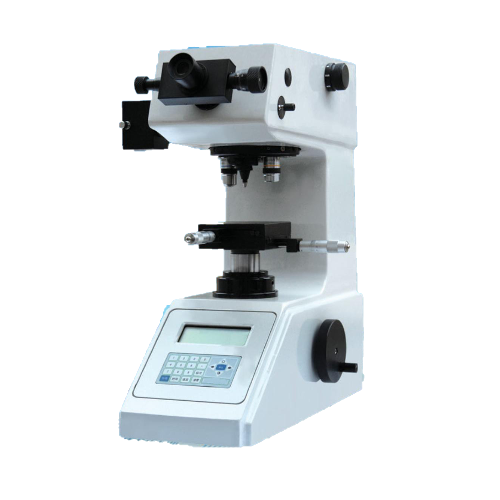

Feature & Use:
Automatic turret shifting between penetrator and objective lens
Frictionless loading shaft, high precision testing force
Automatic testing process, no human operating error
Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E384
It can be used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.
Specifications：
Measuring range: 5-3000HV
Test force: 0.09807, 0.2452, 0.4904, 0.9807, 1.961, 2.942, 4.904, 9.807N
(10, 25, 50, 100, 200, 300, 500, 1000gf)
Hardness scale: HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
Magnifications of the measuring system: 400X (measuring), 100X (observing)
Min. scale value of the optical micrometer: 0.025μm
Measuring range: 200μm
Max. height of test piece: 75mm
Depth of throat: 110mm
Power supply: 220V AC or 110V AC, 50 or 60Hz
Dimensions: 470 x 320 x 500mm
Weight: approx. 40kg
Standard accessories：
Coordinate anvil: 1 pc. (Table size: 100 x 100mm, travel: 25 x 25mm, grade division of micrometer head: 0.01mm)
Thin shaft anvil (Ø0.3- Ø5mm): 1 pc.
Thin plate anvil: 1 pc.
Flat nose pliers: 1 pc.
Large V-notch anvil: 1 pc.
Small V-notch anvil: 1 pc.
Diamond pyramid penetrator: 1 pc.
Micro-Vickers standardized block: 2 pcs.
Optional accessories：
SP-5 Vickers Video measuring apparatus
Knoop penetrator
CCD camera and image processing system
