Application:

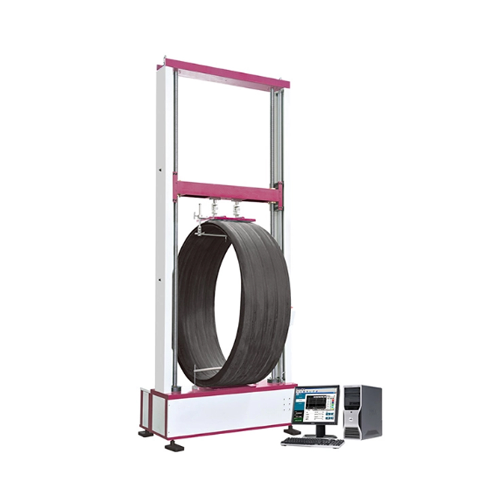

The tester is used to determine ring stiffness,ring softness and compression of thermoplastic pies having circular cross-section. It conforms to the requirements of all kinds of plastic pipes, such as structured-wall pipes,PE corrugated pipes, helically wound pipes,etc.
Standard: ISO 9969, IS09967 and equivalent.
Parameter:
Max.load: 30kN(50kN,100kN option)
Accuracy grade: 0.5
Load resolution: 1N
Load accuracy: ±0.5%
Crossbeam resolution: 0.001mm
Crossbeam accuracy: ±0.5%
Crossbeam speed: 0.5mn-200mm/min
Speed Accuracy: ±1%
Pipe diameter range: 110mm-3000mm
Pipe scope for inner diameter measuring system: 200mm-2000mm
Accuracy of inner diameter measuring system: ±1%
Specimen width: 1000mm
Power supply: 220(1-15%)VAC-220(1+10%)VAC50Hz 2.0Kw
Dimension(L*W*H): (650*1360*4300)mm
Weight: 700kg
Creep Ratio Test(option)
Constant load accuracy: ±1%
Timing range: 1-9999h59min59s
Timing resolution: 1s
Timing eror: 0.1‰s
