Main Function and Usage

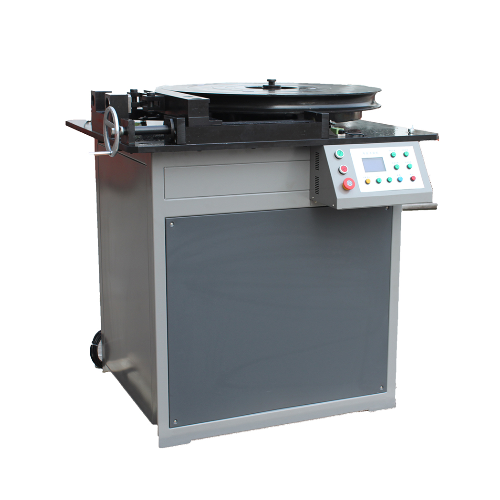

The steel bar bending test machine SYW-40A is developed according to the relevant provisions of the national standard GB/T232-1999 Metal Material Bending Test Method, and can complete the bending test of HRB400 (¢<40mm) steel bar. Its structural performance fully meets the requirements of the test specification. It has two supporting rollers. The distance between the reinforcing bar rolls can be adjusted. It can be equipped with different diameters of the bending center. The diameter of the bending center is specified by the relevant standard, and the diameter of the bending core can be determined according to the diameter of the reinforcing bar. The instrument works reliably and is easy to operate.
Main Specifications and Technical Parameter
Cylinder rated pressure: F=200KN
Piston working stroke: S=350mm
Oil pump working pressure: P=30Mpa
Piston rise speed: V1=80mm/min
Piston descending speed: V2=160mm/min
Motor Power: N=1.5KW
Operating Voltage: 380V
Total Weight: 650Kg
Dimensions (length * width * height): 800x630x1900mm
