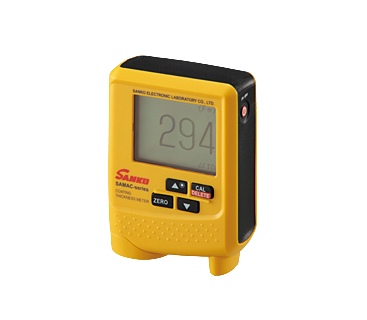

SANKO SAMAC-F Electromagnetic Coating Thickness Meter (0～2.50mm)

Range: 0～2.50mm

Display: Graphic LCD ( data , messages ) , Backup light

Resolution: 1μm: 0～999μm

　　　　　　　　 0.1μm: 0～400μm

　　　　　　　   0.5μmm: 400～500μm

　　　　　　　　 0.01mm: 1.00～2.50 mm

Accuracy: 0～100μm:  ±1μｍ or ±2％ of reading　　

                101μm～2.50mm: ±2％ of reading

Probe: One point contact constant pressure type, with Cross V cut,

Measuring part: φ28mm, Probe part: φ10mm

Additional function:

     1.Switching of measuring mode (hold/non- interruption)
     2.Auto-Power-OFF 　

     3. Backup light

   4.Switching of Display Resolutions

Power source: Dry Battery (LR03 X 2)，Continuous operation hours ： 25 hours

Temperature: 0～40℃ (non-condensing)

Dimensions and weight: 63 (W) ×84 (H) ×30 (D) mm, about125g

Accessories: Thickness standards, Zero plate for checking, Carrying case
