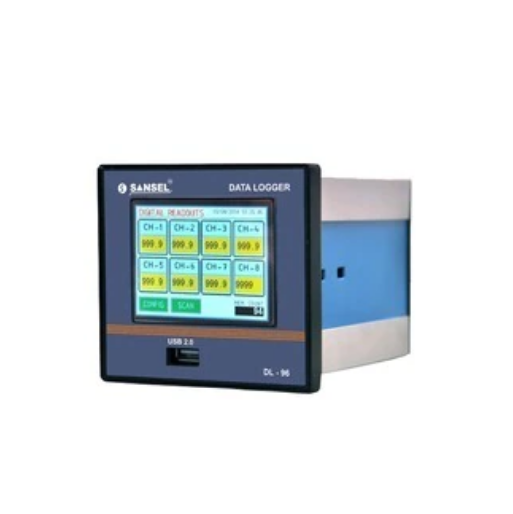

Sansel DL 96 Datalogger (32 Channel)
Manufacturer: Sansel Model: DL 96 P/N: DL 96 (32 Channel) Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Display: Multi Colour TFT display with Touch Screen
No.of. Channel: 32 channel
Password Access: Provided for all configuration settings
Analog & Temp. Inputs (Selectable for Universal Model): RTD - PT 100, TC - J, K, R, S, mA, mV, Volt
Range: As per Input
Alarm output (optional against order): 1 or 2 Common relay (5 A Rated)
Alarm set point: High & Low (user selectable)
Log Interval: 1 sec ~ 24 hour (Selectable)
PC software: Provided logging, alarm setup, record, graph
PC communication: RS 232 or RS 485 or USB or Ethernet(TCP/IP)
Baud rate: 9600 bps
Printer port: Parallel printer port provided
USB connection: USB 2.0 for pen drive data transfer
Mounting: Panel mounting
Operating environment: 0~50ºC/ 20~95% RH (non condensing)
