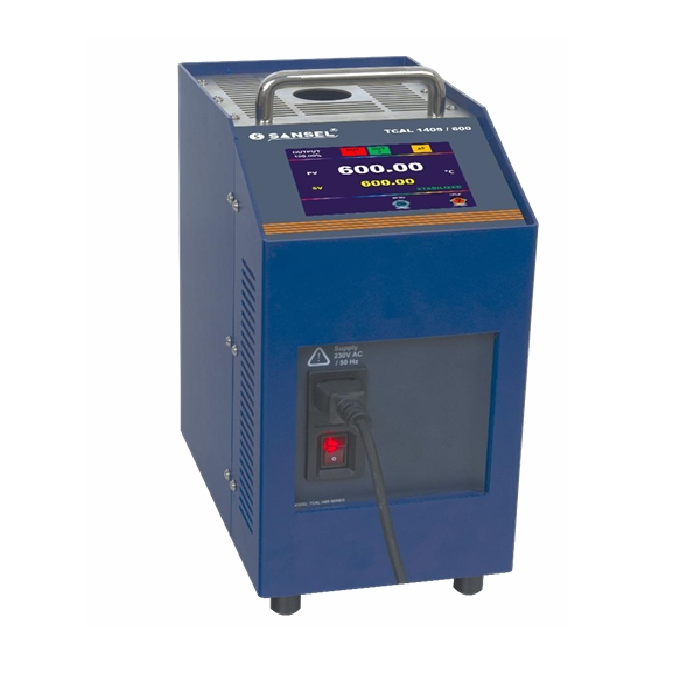

Sansel Model: TCAL 1405 / 600 Precision Dry Block Temperature Calibrator (+5 ~ 600°C)

Temperature Range: Amb.+5 to 600°C

Resolution: 0.01°C

Display: 3.5" True TFT Multi colourtouch screen display

Radial Uniformity: ±0.3 °C

Display Stability: ±0.07 °C

Temperature readout: °C / °F

Well Dimension(dia. x height x hole depth): 30 x 120 x 105 mm

Standard well holes in mm: 4.2 x 1nos, 6.2 x 2nos, 8.1 x 1nos

Power supply: 230V AC ±10% / 50Hz (Optional 110V AC)

Overall Dimension in mm: 142.0 x233.5 x 271.5(L x B x H)(Approx.)

Instrument Weight : 7.5 kg (Approx.)

Datasheet
